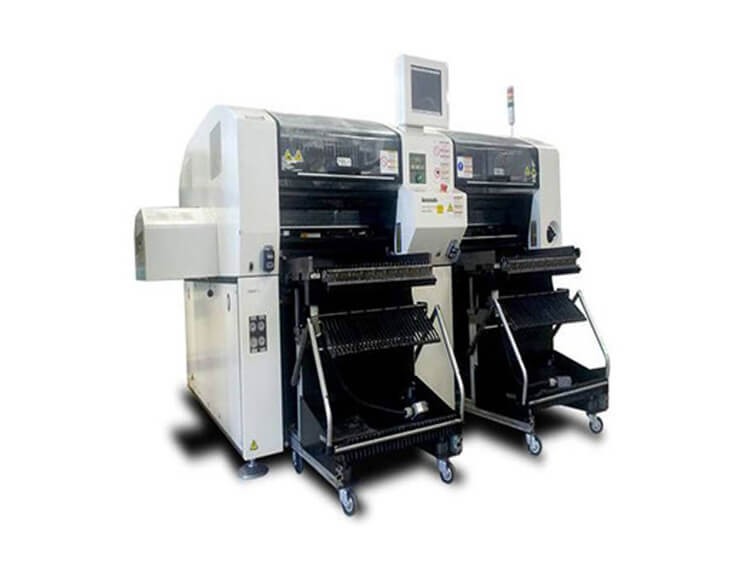

Panasonic CM602 Pick and Place Machine

weioght: 3 400 kg
Max.speed 100 000 cph
Application components:0402 (01005)
PCB dimensions:L 510 x W 460
Product description: Panasonic CM602 Pick and Place Machine, Mounting Speed: 100,000 CPH, Application components:0402 (01005), PCB dimensions:L 510 x W 460, weioght: 3 400 kg

Panasonic CM602 Pick and Place Machine

Panasonic CM602 PCB Placement Machine|Panasonic Machine

Features & Benefits:
One platform solution for any kind of production
Commonality with existing equipment
Linear motor drive increases reliability and reduces maintenance
Wide component capability from 0402 (01005) chips to 90 x 100mm on up to 18" x 20" boards

Panasonic's CM602 high speed multi-functional placement machine lets you achieve world-class throughput via the light head, high-speed recognition camera and linear motor. Fully compatible with our successful CM series feeder units, nozzles and operation, this single platform solution can place up to 100,000 components per hour by selecting the best-suited combination of high-speed and multi-functional heads. Fast, flexible and intelligent - the CM602 takes your productivity to new heights.

Model ID	CM602-L
PCB dimensions (mm)	L 50 x W 50 to L 510 x W 460
High-speed head	12 nozzles
Max.speed	100 000 cph (0.036 s/chip)
Placement accuracy	±40 µm/chip (Cpk1)
Component dimensions (mm)	(01005") 0402 chip *5 to L 12 mm × W 12 mm × T 6.5 mm
High-flexibility head	LS 8 nozzles
Max.speed	75 000 cph (0.048 s/chip)
Placement accuracy	±40 µm/chip, ±35 µm/QFP 24 mm,
Placement accuracy	±50 µm/QFP <24 mm (Cpk1)
Component dimensions (mm)	(01005”) 0402 chip 5 to L 32 mm × W 32 mm × T 8.5 mm 8
Component dimensions (mm)	When the generalized Ver.5 is optionally selected (01005”)0402 chip 5 to L 100 mm × W 50 mm × T 15 mm 6
Multi-functional head	3 nozzles
Max.speed	20 000 cph (0.18 s/QFP)
Placement accuracy	±35 µm/QFP (Cpk1)
PCB exchange time	0.9 s (Board length:up to 240 mm Under optimum conditions)
Electric source	3-phase AC 200, 220, 380, 400, 420, 480 V, 4.0 kVA
Pneumatic source *1	0.49 MPa, 170 L /min(A.N.R.)
Dimensions (mm)	W 2 350 x D 2 290 2 x H 1 430 3
Mass *4	3 400 kg

Keyword:

JUKI RS-1R pick and place machine, JUKI RX-7R pick and place machine, Hanwha SM481 Plus Pick and Place Machine, SMT pick and place machine, JUKI Pick and place Machine, Samsung Pick and Place Machine, Yamaha Pick and Place Machine, Panasonic Pick and Place Machine, FUJI Pick and Place Machine, Siemens Pick and Place Machine.

Shenzhen Qituo electronic Co., Ltd provide a full SMT assembly line solutions, including SMT Reflow Oven, Wave Soldering Machine, Pick and Place Machine, SMT Stencil Printer, SMT AOI SPI Machine, SMT Peripheral Equipment, SMT Assembly line, SMT Spare Parts etc any kind SMT machines you may need, please contact us for more information: wechat whatsapp:+8617748683433, Email: sales@qismt.com

FAQ
1) This is the first time I use this kind of machine, is it easy to operate?
There is English manual or guide video that show you how to use machine.
If you still have any question, please contact us by e-mail / skype/ phone /trademanager online service.
2) If machine have any problem after I receive it, how can I do ?
Free parts send to you in machine warranty period.
If the part is less than 0.5KG, we pay the postage.
If it exceeds 0.5KG, you need to pay the postage.
3) MOQ ?
1 set machine, mixed order is also welcomed.
4) How can I buy this machine from you? ( Very easy and flexible !)
A. Consult us about this product on line or by e-mail.
B. Negotiate and confirm the final price , shipping , payment methods and other terms.
C. Send you the proforma invoice and confirm your order.
D. Make the payment according to the method put on proforma invoice.
E. We prepare for your order in terms of the proforma invoice after confirming your full payment.
And 100% quality check before shipping.
F.Send your order by air or by sea.
5)Why choose us ?
A. Gold supplier on Alibaba !
B. Trade assurance to US$54,000 !
C. Best price & Best shipping & Best service !
