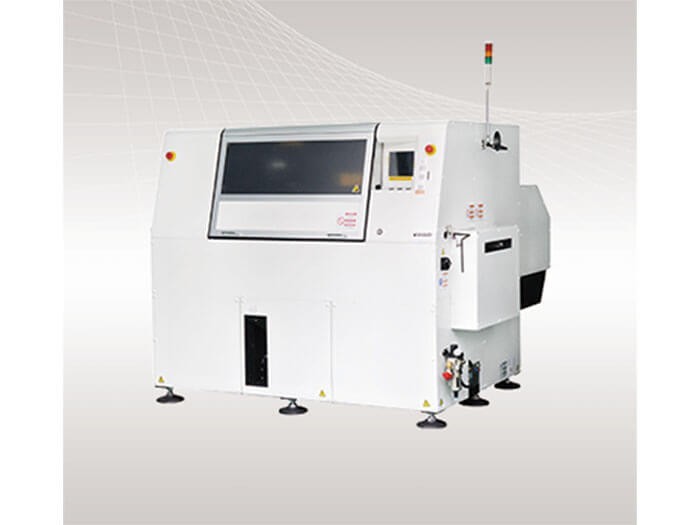

Panasonic Insert Plug-in machine AV132

Panasonic Insert Plug-in machine AV132
max. speed 0.12 s/component
Theoretical speed: 22,000 CPH
Sequence method component supply 40/80 stations
weight: about 2228kg
Body size: W2104 * D2300 * H1575mm

Panasonic Insert Plug-in machine AV132

The Panasonic Insert Plug-in machine AV132 high-speed axial lead component insertion machine features a compact design and 22,000 CPH performance. The dense supply unit configuration is available in 40 or 80 component inputs with optional jumper wire and accommodates both ammo pack and reel. Quicken changeover with the dual partition setup and set up the next job while the current one is being produced.

The AV132 inserts components in four directions: 0°, 90°, 180°, and 270°. Maximize your productivity through the simultaneous use of 26 and 52mm taped components and quick, full auto-recovery.

High-speed axial insertion. 22,000 CPH with 40 or 80 inputs.
Reduce load time by running two PCBs at once
Low cost per insertion
Easy-to-use touch panel

Model ID	AV132
Model No.	NM-EJA6A
PCB Dimensions (mm)	L 50 mm x W 50 mm to L 508 mm x W 381 mm
Maximum Speed *	0.12 s/component [*1]
No. of Component Inputs	40 + 40 + JW (JW is optional)
Applicable Components	Resistors 1/8 W,1/6 W,1/4 W,1/2 W, Jumper wire (tin-plated wire), Diodes, Cylindrical ceramic capacitor
PCB Exchange Time	About 2.0 s
Insertion Direction	4 directions (0°, 90°, 180°, 270°)
Electric Source *	3-phase AC 200 V, 3.5 kVA [*2]
Pneumatic Source	0.5 MPa, 200 L/min (A.N.R.)
Dimensions (mm) *	W 3,106 mm x D 2,300 mm x H 1,575 mm [*3]
Mass *	2,648 kg [*4}
Model No.	NM-EJA5A
PCB Dimensions (mm)	L 50 x W 50 to L 508 x W 381
Maximum Speed *	0.12 s/component [*1]
No. of Component Inputs	40 + JW (JW is optional)
Applicable Components	Resistors 1/8 W,1/6 W,1/4 W,1/2 W, Jumper wire (tin-plated wire), Diodes, Cylindrical ceramic capacitor
PCB Exchange Time	About 2.0 s
Insertion Direction	4 directions (0°, 90°, 180°, 270°)
Electric Source *	3-phase AC 200 V, 3.5 kVA [*2]
Pneumatic Source	0.5 MPa, 200 L/min (A.N.R.)
Dimensions (mm) *	W 2,104 x D 2,300 x H 1,575 [*3]
Mass *	2,228 kg [*4]

* Values such as maximum speed may vary depending on operating conditions.
* Please refer to the ‘‘Specification’’ booklet for details.
[*1]: On condition
[*2]: Compatible with 3-phase 220 / 380 / 400 / 420 / 480 V
[*3]: Excluding signal tower
[*4]: Only for main body
