Panasonic Insert Plug-in machine RG131 / RG131S

Panasonic Insert Plug-in machine RG131 / RG131S
max. speed 0.25 s/component
Theoretical speed: 14,400 CPH
weight: about 2350kg
Body size: W3200 * D2417 * H1620mm

Panasonic Insert Plug-in machine RG131 / RG131S

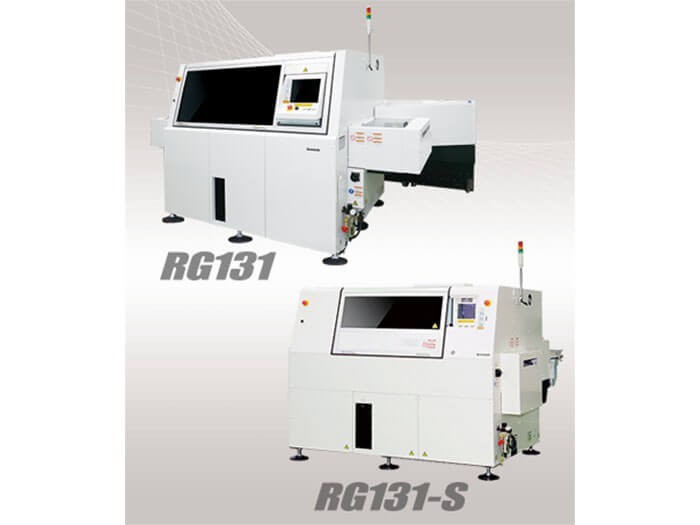

Panasonic Insert Plug-in machine RG131 / RG131S is high-density radial lead component insertion machine, the RG131 with guide pin system provides stable, high-density insertion at 14,400 cph (0.25s/component).

This through-hole machine inserts components with a pitch range of 2.5mm, 5.0mm or 7.5mm and allows for 40 or 80 component inputs - a wide component range in a compact footprint with a low cost of ownership.

Full auto-recovery corrects insertion errors while the part exhaust detection system allows for proactive part replenishment and promotes continuous productivity.

4 insertion directions (0°, 90°, -90°, 180°)
Wide pitch range encompassing 2.5/5.0/7.5 and 10 mm pitch in a common platform - eliminating the need for post insertion manual placements of 10 mm pitch components
Auto-recovery and part exhaust detection
Enhanced programmable T-Clinch technology ensures interference-free insertions by eliminating shorts on underside layout
Wide component range up to 18 mm diameter (ø)

Model ID	RG131
Model No.	NM-EJR3A
PCB Dimensions (mm)	L 50 mm x W 50 mm to L 508 mm x W 381 mm
Maximum Speed *	0.25 s/component to 0.6 s/component [*1]
No. of Component Inputs	40
Applicable Components	Pitch 2.5 mm, 5.0 mm, 7.5 mm, 10.0 mm Height Hn=Max. 26 mm Diameter D=Max. 18 mm Resistor, Electrolytic capacitor, Ceramic capacitor, LED, Transistor, Filter, Resistor network
PCB Exchange Time	~2s to about 4s (Room temperature 20℃)
Insertion Direction	4 directions (0°, 90°, -90°, 180°)
Electric Source *	3-phase AC 200 V, 3.5 kVA [*2]
Pneumatic Source	0.5 MPa, 80 L/min (A.N.R.)
Dimensions (mm)	W 3,200 x D 2,417 x H 1,620 [*3]
Mass	2,250 kg
Model No.	NM-EJR4A
PCB Dimensions (mm)	L 50 x W 50 to L 508 x W 381
Maximum Speed *	0.25 s/component to 0.6 s/component [*1]
No. of Component Inputs	80 (Connection mode), 40 + 40 (Exchange mode)
Applicable Components	Pitch 2.5 mm, 5.0 mm, 7.5 mm, 10.0 mm Height Hn=Max. 26 mm Diameter D=Max. 18 mm Resistor, Electrolytic capacitor, Ceramic capacitor, LED, Transistor, Filter, Resistor network
PCB Exchange Time	~2s to about 4s (Room temperature 20℃)
Insertion Direction	4 directions (0°, 90°, -90°,180°)
Electric Source *	3-phase AC 200 V, 3.5 kVA [*2]
Pneumatic Source	0.5 MPa, 80 L/min (A.N.R.)
Dimensions (mm) *	W 3,200 x D 2,417 x H 1,620 [*3]
Mass	2,350 kg

* Values such as maximum speed may vary depending on operating conditions.
* Please refer to the ‘‘Specification’’ booklet for details.
[*1]: On condition
[*2]: Compatible with 3-phase 220 / 380 / 400 / 420 / 480 V
[*3]: Excluding signal towe
