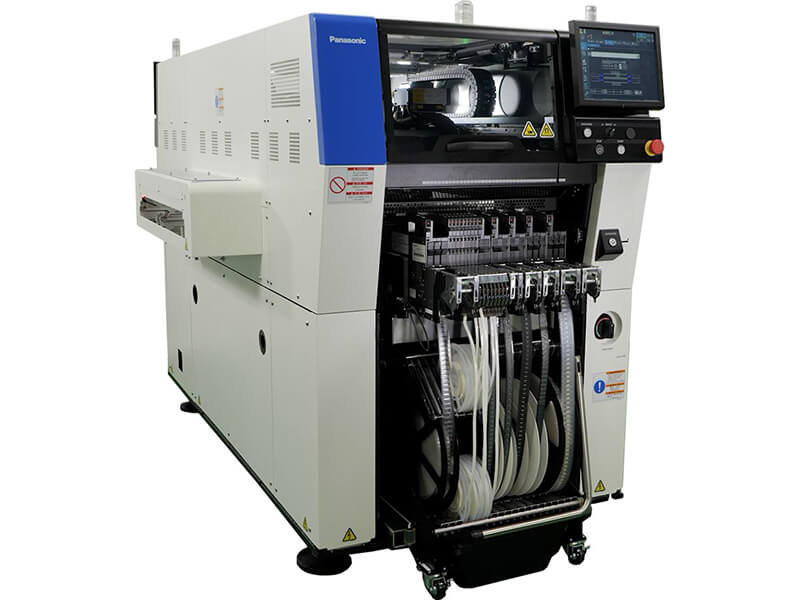

Panasonic NPM GH Modular Placement Machine

Max PCB:L 510 × W 590
Placing Speed: 103,000CPH
Weight: 2330 kg
Product description: Panasonic NPM GH Pick and Place Machine, Max PCB:L 510 × W 590, Placing Speed: 103,000CPH, Weight: 2330 kg, Dimension:W975×D2473×H1444mm

Panasonic NPM GH Modular Placement Machine

The NPM-GH modular mounter is the flagship model designed for the ‘Autonomous Factory’ that redefines industry standards with its unparalleled mounting accuracy and exceptional productivity using new Flat contact heads. Utilizing a compact and lightweight mounting head, the NPM-GH achieves an astounding speed of 103,000 chips per hour in high production mode. Notably, this machine also boasts an accuracy level of ±15 μm. Each type of head delivers greater component compatibility, from micro-sized chips to large BGAs & large-size connectors. It has Autonomous control variations in the 5M’s (Man, Machine, Material, Method, and Measurement) & reduces dependency on skill-based operators. An enlarged operation screen enhances the user interface, while the ability to simultaneously control each side of the machine enhances operability.

PCB dimensions (mm)	Single-lane mode: L 50 mm × W50 mm ～ L 510 mm × W 590 mm Dual -lane mode: L 50 mm × W50 mm ～ L 510 mm × W 300 mm
PCB exchange	2.3 s ( L 350 mm or less) 5.0 s ( L 350 mm or over to L 510 mm or less)
Electric Source	3-phase AC 200 , 220 , 380 , 400 , 420 , 480 V 2.1 kVA
Pneumatic Source	Min.0.5 MPa ～ Max. 0.8 MPa、200 L / min (A.N.R.）
Dimensions (mm)	W 975 mm × D 2 473 mm × H 1 444 mm
Mass	2 330 kg
Placement Head	FC16 head FC08 head FC03 head
Placement Head max Speed	FC16 head: 51 500 cph (0.069 s / chip) high prod. / 37 500 cph（0.096 s / chip）high acc. FC08 head: 25 500 cph （0.141 s / chip）high prod. / 20 500 cph （0.176 s / chip): high acc. FC03 head: 10 100 cph （0.356 s / chip) high prod / 9 000 cph （0.4 s / chip）high acc.
Placement Accuracy	FC16 head: ±25 μm /chip high prod / ±15 μm /chip high acc. FC08 head: ±25 μm / chip high prod / ±15 μm /chip high acc FC03 head: ±25 μm / chip high prod / ±15 μm / chip high acc
Component dimensions	FC16 head: 0201 chip / 03015 chip ～ L 10 × W 10 × T 3 FC08 head: 0402 chip ～ L 45 × W 45 or L 100 × W 40 × T 12 FC03 head: 0603 chip ～ L 120 × W 90 or L 150 × W 25 × T 30
Taping	FC16 head: Tape：4 / 8 / 12 / 16 / 24 / 32 / 44 / 56 mm FC08 head: Tape：4 ～ 56 / 72 mm FC03 head: Tape：4 ～ 56 / 72 / 88 / 104 mm
Stick	FC08 head & FC03 head: ITF cart(17-slot) specifications：Max.48
Tray	FC08 head & FC03 head: Max.24
