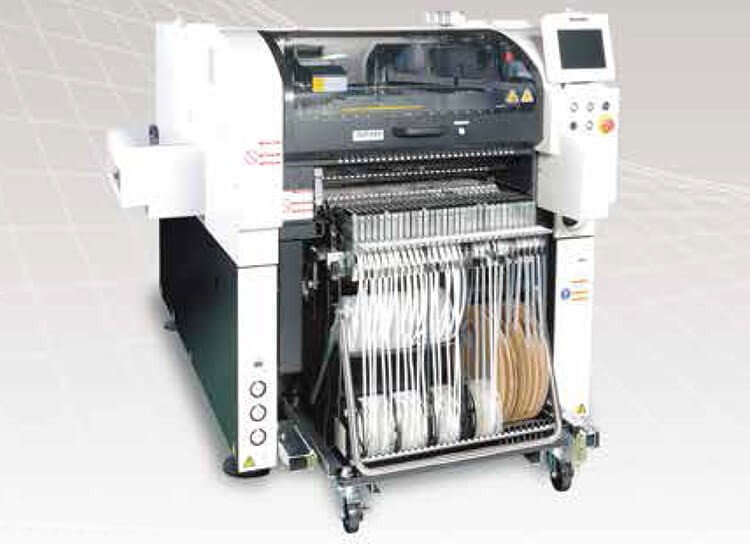

Panasonic NPM W2S Pick and Place Machine

Max PCB: L 750 x W 550
Placing Speed: 75000CPH
Max Feeder: 120 reels
Weight: 2390 kg
Product description: Panasonic NPM W2S Pick and Place Machine, Max PCB: L 750 x W 550, Placing Speed: 75000CPH, Max Feeder: 120 reels, Weight: 2390 kg, Dimension: W1280×D2477×H1444mm

Panasonic NPM W2S Pick and Place Machine

Directly connectable to NPM-W2

Support for single-/dual-lane transport
Selection of the mounting head according to production form
Selectable from Lightweight16-/12-/Lightweight8-/3-nozzle head V2
Mutual compatibility with NPM series
Shared use of the placement head/nozzle, tape feeder and feeder cart
*For details, contact our sales representative.
Adoption of 3-nozzle head V2
Capable of a max placement load of 100N.

Model ID			NPM-W2S
PCB dimensions (mm)	Single-lane*1	Batch mounting	L 50 x W 50 ~ L 750 x W 550
		2-positin mounting	L 50 x W 50 ~ L 350 x W 550
	Dual-lane*1	Dual transfer (Batch)	L 50 × W 50 ~ L 750 × W 260
		Dual transfer (2-positin)	L 50 × W 50 ~ L 350 × W 260
		Single transfer (Batch)	L 50 × W 50 ~ L 750 × W 510
		Single transfer (2-positin)	L 50 × W 50 ~ L 350 × W 510
Electric source			3-phase AC 200, 220, 380, 400, 420, 480 V 2.0 kVA
Pneumatic source			0.5 MPa, 200 L /min (A.N.R.)
Dimensions *2 (mm)			W 1 280 3 × D 2 477 4 × H 1 444 *5
Mass			2 390 kg (Only for main body:This differs depending on the option configuration.)

Placement head		Lightweight 16-nozzle head	12-nozzle head	Lightweight 8-nozzle head	3-nozzle head V2
Max. speed		38 500cph (0.094 s/ chip)	32 250cph (0.112 s/chip)	20 800cph (0.173 s/ chip)	8 320cph (0.433 s/ chip) 6 500cph (0.554 s/ QFP)
Placement accuracy (Cpk1)		±30 μm / chip (±25μm / chip *6)	±30 μm / chip	± 30 µm/chip ± 30 µm/QFP 12mm to 32mm ± 50 µm/QFP 12mm Under	± 30 µm/QFP
Component dimensions (mm)		030157 8/0402*7 chip ~ L 6 x W 6 x T 3	0402*7 chip ~ L 12 x W 12 x T 6.5	0402*7 chip ~ L 32 x W 32 x T 12	0603 chip to L 150 x W 25 (diagonal152) x T 30
Component supply	Taping	Tape : 4 / 8 / 12 / 16 / 24 / 32 / 44 / 56 mm		Tape : 4 to 56 mm	Tape : 4 to 56 / 72 / 88 / 104 mm
		Max.120 (Tape: 4, 8 mm, Small real)		Front/rear feeder cart specifications : Max.120 ( Tape width and feeder are subject to the conditions on the left) Single tray specifications : Max.86 ( Tape width and feeder are subject to the conditions on the left) Twin tray specifications : Max.60 ( Tape width and feeder are subject to the conditions on the left)
	Stick	-		Front/rear feeder cart specifications : Max.15 (Single stick feeder) Single tray specifications : Max.15 (Single stick feeder) Twin tray specifications : Max.15 (Single stick feeder)
	Tray	-		Single tray specifications : Max.20 Twin tray specifications : Max.40

*1 : Please consult us separately should you connect it to NPM-D3/D2/D. It cannot be connected to NPM-TT and NPM.
*2 : Only for main body
*3 : 1 880 mm in width if extension conveyors (300 mm) are placed on both sides.
*4 : Dimension D including tray feeder : 2 618 mm
Dimension D including feeder cart : 2 513 mm
*5 : Excluding the monitor, signal tower and ceiling fan cover.
*6 : ±25 μm placement support option. (Under conditions specified by PSFS)
*7 : The 03015/0402 chip requires a specific nozzle/feeder.
*8 : Support for 03015 mm chip placement is optional.
(Under conditions specified by PSFS,Placement accuracy : ±30 μm/ chip)
*Placement tact time,inspection time and accuracy values may differ slightly depending on conditions
*Please refer to the specification booklet for details.
