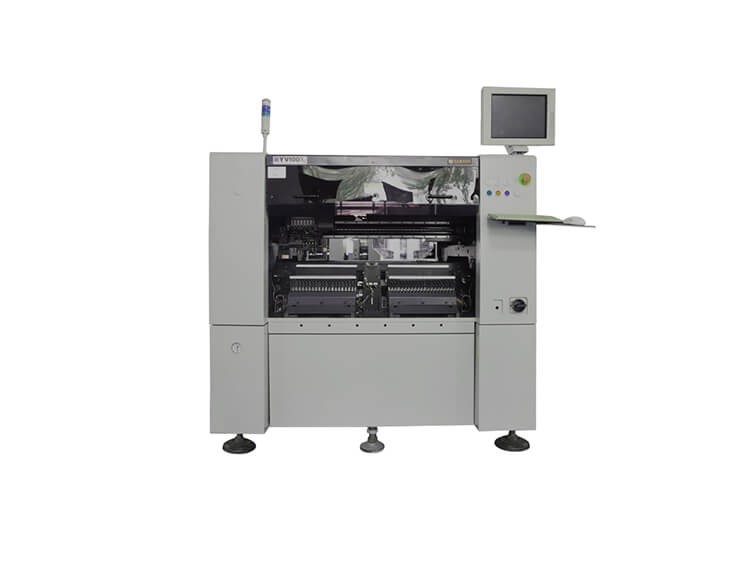

YAMAHA YV100XG Pick and Place Machine

YAMAHA YV100XG Pick and Place Machine

YAMAHA YV100XG Pick and Place Machine

1) High-speed and high-precision multi-functional modular placement machine

2) 0.18 seconds/CHIP ultra high speed placement (best condition) 16200CPH (grain/hour)

3) In the IPC9850 state, the patch speed is up to 16200CPH (corresponding to 0.22 seconds/CHIP)

4) Mount 0603 components, the whole precision up to ± 50 microns, full repeat accuracy up to ± 30 microns

5) Wide range of applications, from 0201 (inch) microcomponents to 31mm QFP large components

6) Using 2 high resolution multi-vision digital cameras

7) Continuous solder ball recognition for CSP/BGA components, including the determination of the defect of solder balls

8) The YAMAHA patented flight change nozzle can be selected, which can effectively reduce the machine idle loss

9) The best choice for universal type

10) The Y-axis is driven by high-power servo amplifiers and high-rigidity screw rods at the left and right ends.

This newly developed fully-fixed dual-driver technology accelerates acceleration and co-ordination

through both ends to drive and completes the acceleration function. Reduced positioning time.

Board size M type: L460*W335(MAX)-L50*W50(MIN)

L type: L460*W440(MAX)-L50*W50(MIN)

Mounting Accuracy Absolute Accuracy (μ+3σ): ±0.05mm/chip, ±0.05mm/QFP

Mounting speed 0.18 seconds/CHIP 1.7 seconds/QFP,1608/CHIP:16200CPH

Mountable Components:

0603-31mm Components, SOP/SOJ/QFP/Connectors/PLCC/CSP/BGA

Dimensions 1650*1408*1900

Total weight 1600KG

Keyword:

JUKI RS-1R pick and place machine, JUKI RX-7R pick and place machine, Hanwha SM481 Plus Pick and Place Machine, SMT pick and place machine, JUKI Pick and place Machine, Samsung Pick and Place Machine, Yamaha Pick and Place Machine, Panasonic Pick and Place Machine, FUJI Pick and Place Machine, Siemens Pick and Place Machine.

Shenzhen Qituo electronic Co., Ltd provide a full SMT assembly line solutions, including SMT Reflow Oven,  Wave Soldering Machine,  Pick and Place Machine,  SMT Stencil Printer,  SMT AOI SPI Machine,  SMT Peripheral Equipment,  SMT Assembly line,  SMT Spare Parts etc any kind SMT machines you may need, please contact us for more information: wechat whatsapp:+8617748683433,  Email: sales@qismt.com

FAQ
1) This is the first time I use this kind of machine, is it easy to operate?
There is English manual or guide video that show you how to use machine.
If you still have any question, please contact us by e-mail / skype/ phone /trademanager online service.
2) If machine have any problem after I receive it, how can I do ?
Free parts send to you in machine warranty period.
If the part is less than 0.5KG, we pay the postage.
If it exceeds 0.5KG, you need to pay the postage.
3) MOQ ?
1 set machine, mixed order is also welcomed.
4) How can I buy this machine from you? ( Very easy and flexible !)
A. Consult us about this product on line or by e-mail.
B. Negotiate and confirm the final price , shipping , payment methods and other terms.
C. Send you the proforma invoice and confirm your order.
D. Make the payment according to the method put on proforma invoice.
E. We prepare for your order in terms of the proforma invoice after confirming your full payment.
And 100% quality check before shipping.
F.Send your order by air or by sea.
5)Why choose us ?
A. Gold supplier on Alibaba !
B. Trade assurance to US$54,000 !
C. Best price & Best shipping & Best service !
