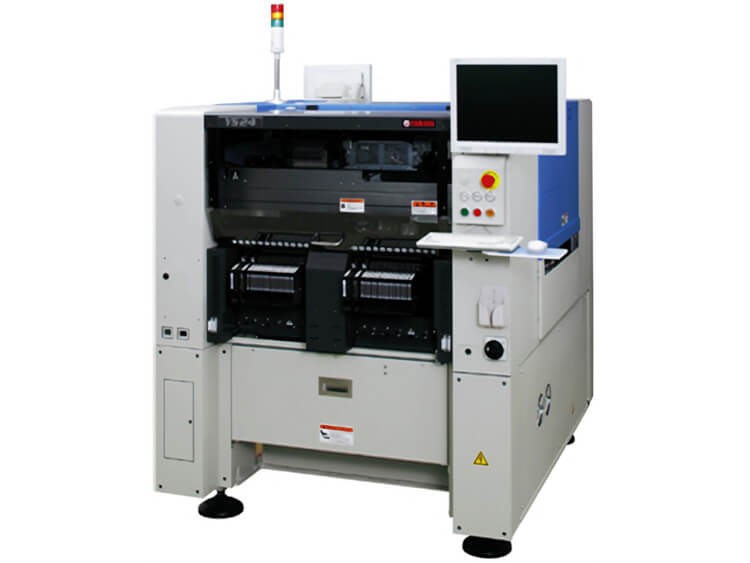

Yamaha YS24 Pick and Place Machine

Dimensions: L1,254×W1,687×H1,445mm
Speed:72,000CPH
Component range 0402 to 32 x 32mm
Weight:1700KG
Product description: Yamaha YS24 chip mounter, Speed:72,000CPH, Component range 0402 to 32 x 32mm, Weight:1700KG, Dimensions: L1,254×W1,687×H1,445mm

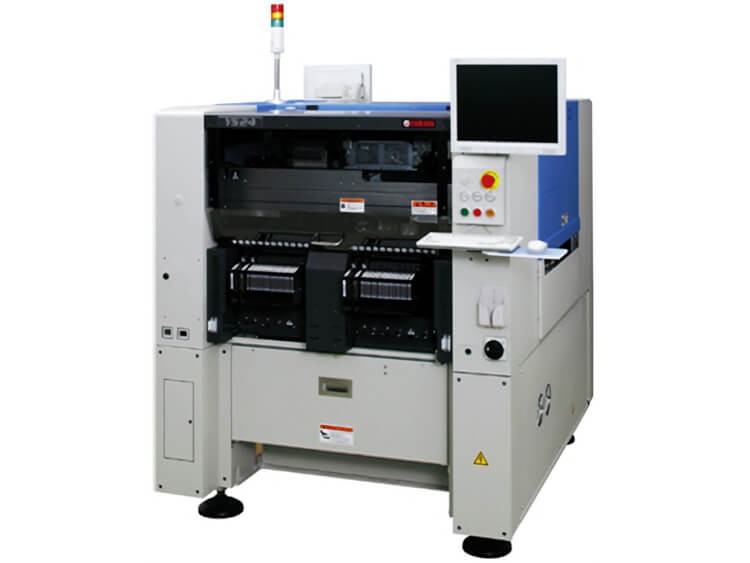

Yamaha YS24 Pick and Place Machine

Yamaha YS24 Specification And Price(Compact Super-High-Speed Modular)

The price range for used Yamaha YS24 chip mounter is

about USD60000-USD98000（Only for reference).
Yamaha YS24 Series Mounter is divided into Yamaha YS24 chip mounter and

Yamaha YS24X models,
Yamaha YS24/YS24X supports L700×W460mm ultra large substrates
Yamaha's unique dual placement table, dual rail system.
YS24 production per unit area of 340,000 CPH / square meter.

Model	YAMAHA YS24
Applicable PCB	L50xW50mm –to L700xW460mm
Mounting accuracy	+/-0.05mm ( + 3sigma), +/-0.03mm (3sigma)
Speed	72,000CPH (0.05 sec./CHIP: Optimum conditions established by Yamaha Motor)
Applicable components	0402 to 32x32mm MAX (Height 6.5mm or less)
Component Types	120 types (Max./8mm wide tape reel conversion)
Power supply	Three phase AC 200/208/220/240/380/400/416 V +/-10%
Air supply source	0.45MPa
External dimension	L1,254x W1,687x H1,445mm (Excluding protrusions)
Weight	Approx. 1,700kg

72,000CPH (0.05sec/CHIP)
Excellent mounting capability
Newly developed "Dual Stage Conveyor" 34kCPH/㎡
Area-productivity, top class in the world
L700 x W460mm Super large PCB applicable
YAMAHA Dual Lane System applicable
120 Max feeder capacity
0402 to 32 x 32mm
Components applicable

Yamaha YS24X chip mounter parameters:
Top Mounting Capacity in General Mounter 54,000 CPH (0.067 Seconds/CHIP)
The maximum number of feeders that can be installed (8mm tape trays) is 96
(62 with sATSII)
Supports automatic pallet changer (30 kinds of JEDEC pallets) sATSII
Supportable components, height 0402~45×100mm, H15mm
Dimensions: L1,254×W1,687×H1,445mm; host only,
L1,544 (lengthened conveyor end)×W2,020×H1,545mm
Weight: about 1,700kg (host only)
About 1,890kg
