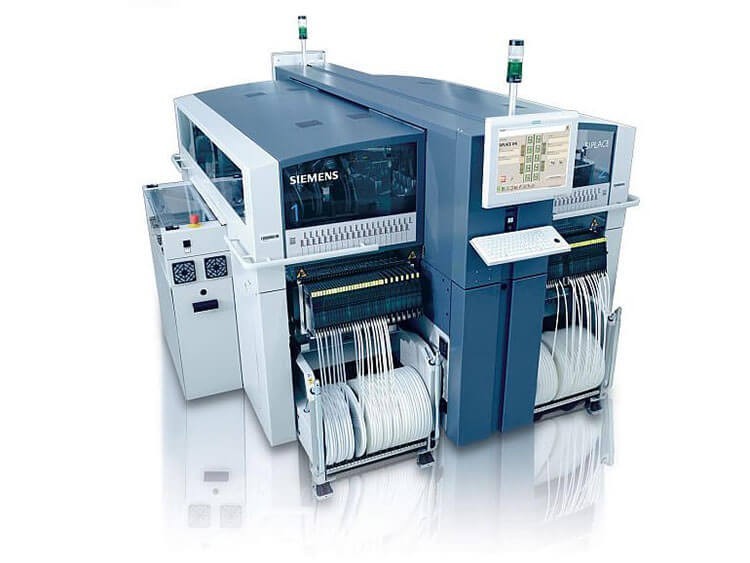

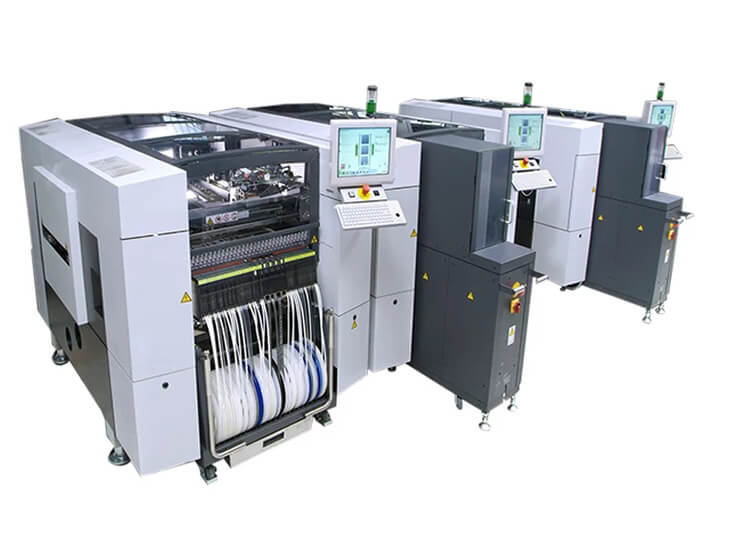

ASM SIPLACE XS Series Pick and Place Machine

Speed:170,500 CPH
PCB Size : 450 x 560mm(up to 850 mm x 560 mm with LBO)
Feeder input:160
Component range:03015 - 200x125mm
Product description: ASM SIPLACE XS Series Pick and Place Machine , Speed:170,500 CPH, PCB Size : 450 x 560mm(up to 850 mm x 560 mm with LBO), Feeder input:160, Component range:03015 - 200x125mm

ASM SIPLACE XS Series Pick and Place Machine

Absolute precision and maximum performance have made the SIPLACE X S the placement platform of choice for demanding high-volume production applications such as network infrastructure (5G), large boards for server and industrial segments. Wherever top speed, lowest dpm rates, non-stop setup changeovers, fast new product introductions and the high-speed placement of the latest generations of super-small components (0201 metric) are needed – the SIPLACE X S delivers.

Highlights of the SIPLACE X S:

SIPLACE Placement Head CP20 for high-speed and placement of components as small as 0201 (metric) with maximum precision
SIPLACE Placement Head CPP – the only head that automatically changes modes on demand (C&P, P&P, Mixed Mode)
SIPLACE Placement Head TWIN – the head for special tasks
Digital SIPLACE vision system for maximum process stability
Available with two, three and four gantries and smart conveyor options for optimized line configurations
Modular gantries to meet any production challenges

Technical data*	SIPLACE X2 S	SIPLACE X3 S	SIPLACE X4 S	SIPLACE X4i S
Speed (benchmark rating**)	75,000 cph	112,500 cph	150,000 cph	172,000 cph
Speed (IPC rating)	65,000 cph	97,050 cph	130,000 cph	146,000 cph
Feeder slots	160*8mm			148*8mm
Component spectrum	0201 metric to 200 mm × 110 mm × 25 mm
Board sizes	50 mm × 50 mm to 850 mm × 685 mm
Machine dimensions (L x W x H)	190026001600mm
Placement heads	Placement Head CP20, Placement Head CPP, Placement Head TWIN
Placement accuracy	22 µm @ 3 σ (with Placement Head TWIN)
Conveyors	Single conveyor, flexible dual conveyor

* Professional maintenance in accordance with the intervals and scope recommended by ASMPT ensures that your SIPLACE equipment complies with specified performance and accuracy values across its entire life cycle. We offer custom-tailored maintenance contracts. Please contact us.

** SIPLACE benchmark
