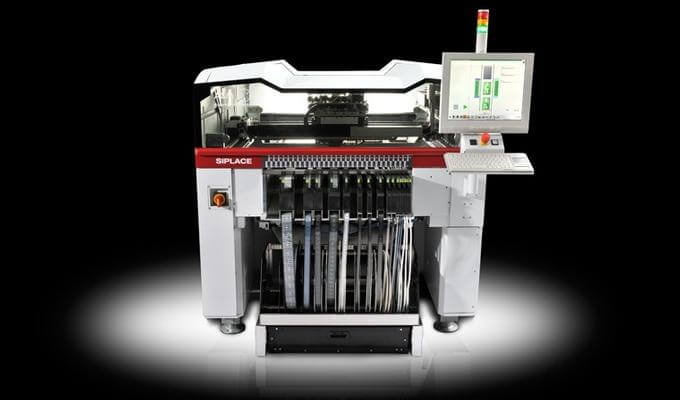

Siemens Siplace E series Pick And Place Machine

Siemens Pick and Place Machine
Patch speed:24000CPH
Dimension:1,500 mm x 1,666 mm
Weight: 1,850 kg
Product description: Siemens Siplace E series Pick And Place Machine SMT Flexible chip mounter, Patch speed:24000CPH, Dimension:1,500 mm x 1,666 mm, Weight: 1,850 kg

Siemens Siplace E series Pick And Place Machine

Placement Machine	SIPLACE E
Heads	CP14, CP12, CP12/PP, CP6/PP, TH
PCB Size(LxW)	1,200 x 460 mm
PCB Thickness	0.3 - 4.5 mm
Feeder Capacity	120 x 8 mm
Power Supply	3 x 200/208/220/230/380/400/415 VAC ± 10%, 50/60 Hz, 1.8 KW
Compressed Air	5.0 bar (0.5 MPa) - 10.0 bar (1.0 MPa)
Air Consumption	90 NL/Min	90 NL/Min	140 NL/Min	140 NL/Min	185 NL/Min
Dimension (LxW)	1,500 mm x 1,666 mm
Weight	1,850 kg

Basic parameters:

Mounting head CP20 placement head CP12 placement head TH placement head
Component range 01005～6×6mm 0201～18.7×18.7mm 0201～200×125mm
Component height 4 mm 6 mm 25 mm
Mounting accuracy ±41μm, ±0.5°@3σ ±41μm, ±0.5°@3σ ±22μm, ±0.05°@3σ
Model DX4 DX2 DX1
Applicable heads CP20 CP20, CP12, TH CP20, CP12, TH
Theoretical speed 135,500 CPH 65,500 CPH 33,300 CPH
IPC speed 90,500 CPH 38,000 CPH 22,500 CPH
PCB (length X width) mm 50×50～550×560 50×50～610×560
PCB (thickness) mm 0.3~4.5 (others available on request)
8mm feeder level 148 120
Power supply Three-phase 220/208/230/380/400/415VAC±5%. 50/60Hz
Gas supply 5.0bar (0.5MPa)-10bar (1.0MPa)
Machine size (length X width) mm 1900×2734 1500×2854 1500×2854
Machine weight 346Okg 2532kg 2482kg

Keyword:

JUKI RS-1R pick and place machine, JUKI RX-7R pick and place machine, Hanwha SM481 Plus Pick and Place Machine, SMT pick and place machine, JUKI Pick and place Machine, Samsung Pick and Place Machine, Yamaha Pick and Place Machine, Panasonic Pick and Place Machine, FUJI Pick and Place Machine, Siemens Pick and Place Machine.

Shenzhen Qituo electronic Co., Ltd provide a full SMT assembly line solutions, including SMT Reflow Oven, Wave Soldering Machine, Pick and Place Machine, SMT Stencil Printer, SMT AOI SPI Machine, SMT Peripheral Equipment, SMT Assembly line, SMT Spare Parts etc any kind SMT machines you may need, please contact us for more information: wechat whatsapp:+8617748683433, Email: sales@qismt.com

FAQ
1) This is the first time I use this kind of machine, is it easy to operate?
There is English manual or guide video that show you how to use machine.
If you still have any question, please contact us by e-mail / skype/ phone /trademanager online service.
2) If machine have any problem after I receive it, how can I do ?
Free parts send to you in machine warranty period.
If the part is less than 0.5KG, we pay the postage.
If it exceeds 0.5KG, you need to pay the postage.
3) MOQ ?
1 set machine, mixed order is also welcomed.
4) How can I buy this machine from you? ( Very easy and flexible !)
A. Consult us about this product on line or by e-mail.
B. Negotiate and confirm the final price , shipping , payment methods and other terms.
C. Send you the proforma invoice and confirm your order.
D. Make the payment according to the method put on proforma invoice.
E. We prepare for your order in terms of the proforma invoice after confirming your full payment.
And 100% quality check before shipping.
F.Send your order by air or by sea.
5)Why choose us ?
A. Gold supplier on Alibaba !
B. Trade assurance to US$54,000 !
C. Best price & Best shipping & Best service !
