Siemens SIPLACE X3S+SX2 (+WPC) Pick and place Machine

Siemens SIPLACE X3S+SX2 (+WPC) Pick and place Machine

Siemens SIPLACE X3S+SX2 (+WPC) Pick and place Machine

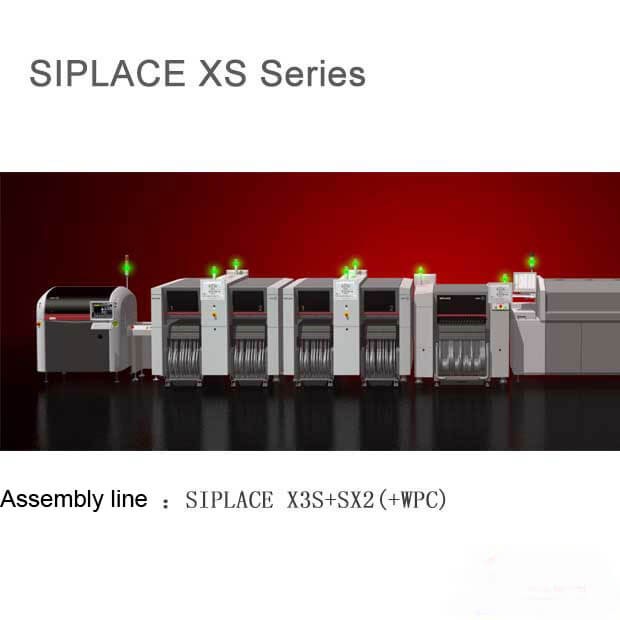

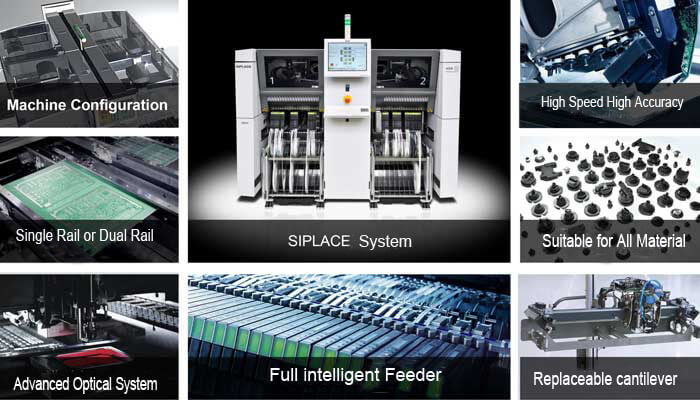

The latest generation of Siemens placement machine SIPLACE XS Series,

High-speed and high-precision mounting 03015 components, designed for zero yield, flexible single and double rail, advanced vision system, true intelligent feeding, adapt to all materials, can be replaced with cantilever,
Meet customers' high volume and high quality production.

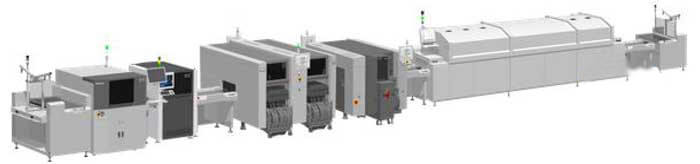

Recommended SIPLACE XS Series wiring:

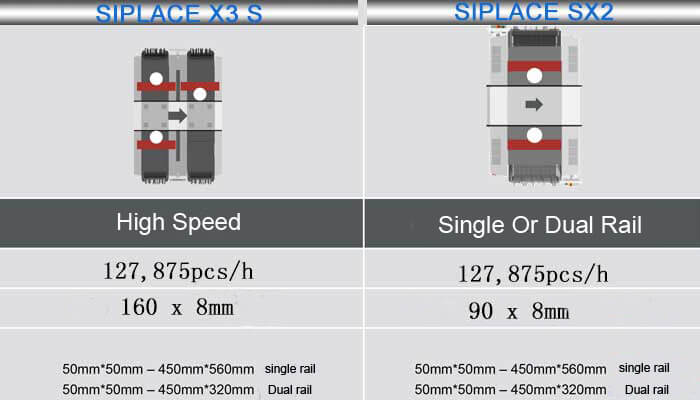

Production line configuration: SIPLACE X3S+SX2 (+WPC)

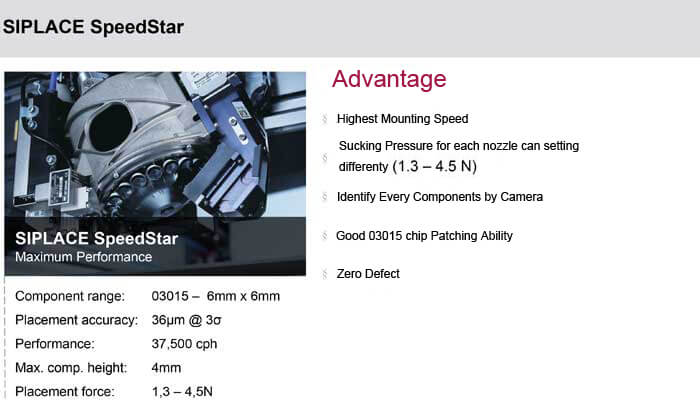

Siemens SMT shooter: D4, D2, D1, S20 25 27 50 60, F3, F4, F5
Theoretical capacity: 158,875 components / hour
Mounting accuracy: 22 microns @3sigma
Feeder capacity: 250 8mm + 28 layer automatic Ic feeder
Mounting component range: 03015 ~ 200 x 125mm

Machine configuration:

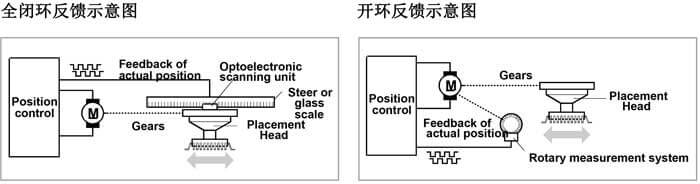

SIPLACE uses a fully closed loop positioning system
High precision grating scale with 1 micron accuracy
Real-time feedback of the X/Y/Z position of the head movement
The full closed loop feedback system is guaranteed with high precision and high repeatability!

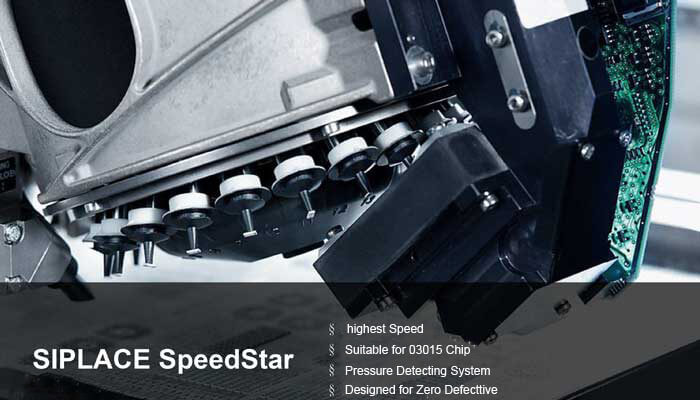

Real-time detection of components during pick and place

Laser detection
Before picking up components / after sucking / before mounting / after mounting
Is the laser detection component normal?
The component supply batch changes, causing component height changes. It can also be adjusted automatically by the component sensor.

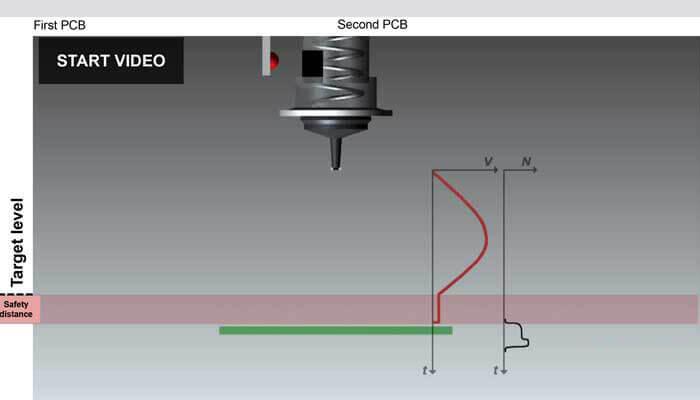

Mounting pressure automatic sensing (normal PCB)

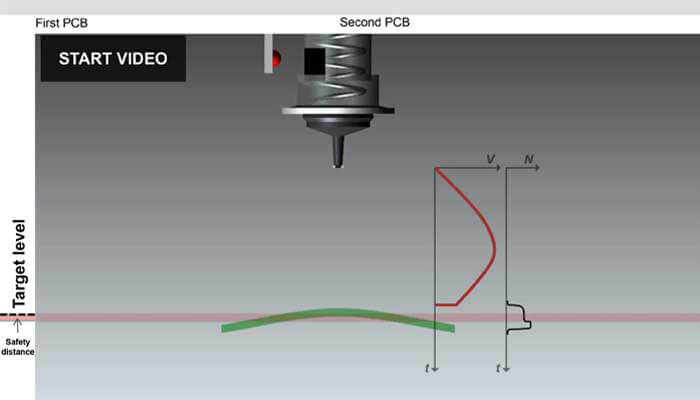

Mounting pressure automatic sensing (PCB up)

Mounting pressure automatic sensing (PCB down)

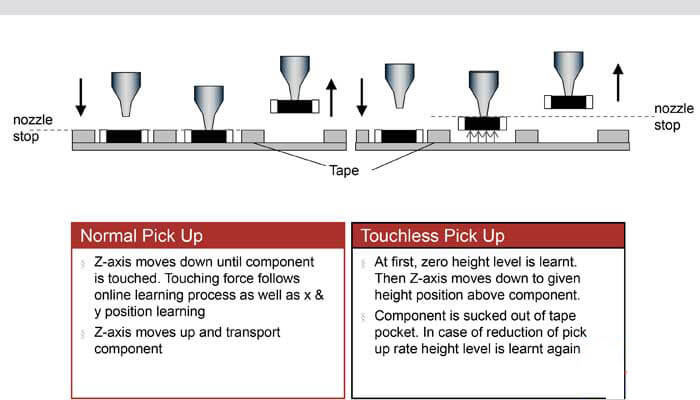

Non-contact suction for components 0201 and smaller

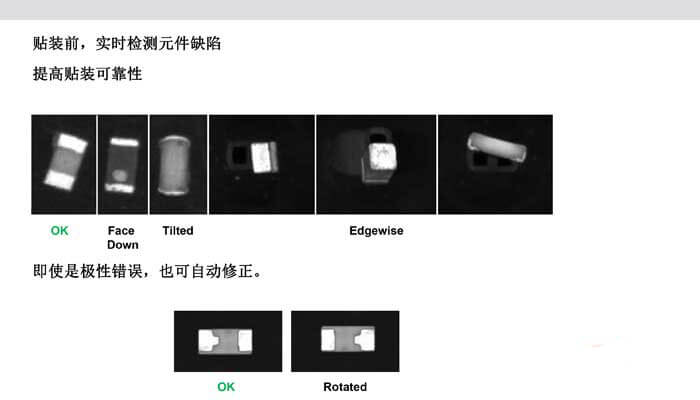

SIPLACE digital camera
Real-time detection of component defects before placement
Improve placement reliability
Automatic correction even if the polarity is wrong

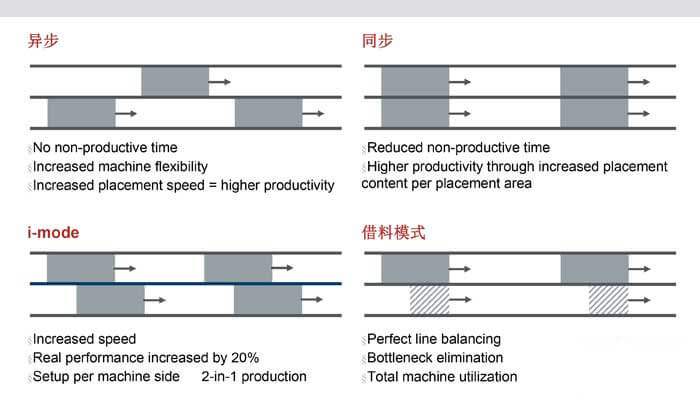

SIPLACE flexible dual-track production mode

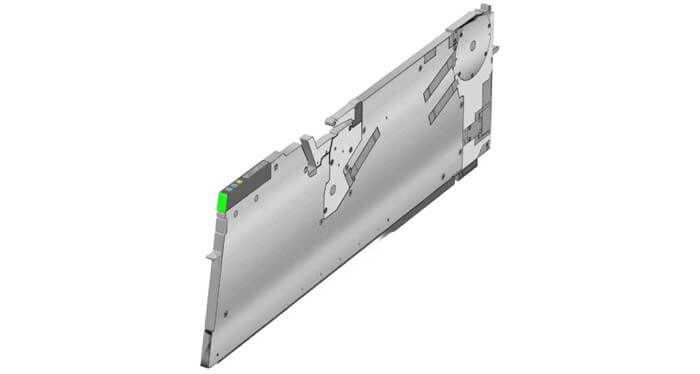

SIPLACE X-Feeders - wireless, smart feeder
Benefits to customers:
LED display
Self-correcting, no calibration required
Use all steps
Wireless, intelligent
Support random insertion
The step can be transferred to the Feeder after being set by the computer.
Tape feeder width: 4mm – 104mm
Tape reel diameter: 178mm – 483mm (7"-19")
Changeover time: 8 seconds

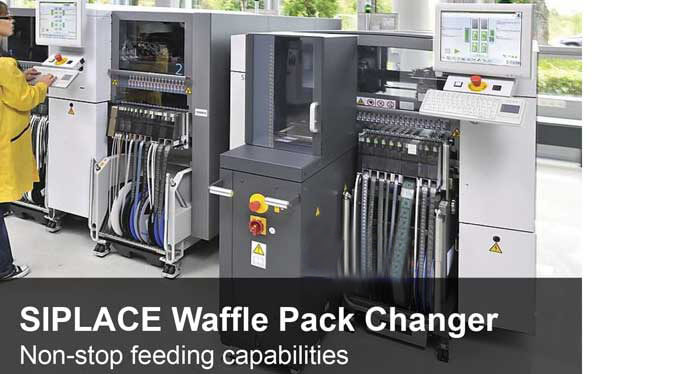

SIPLACE WPC-automatic IC feeder, uninterrupted loading
Storage capacity: 28 WTC’s
Capacity per WTC: 10 Trays
Max. comp. height: 40mm

SIPLACE service system
First, 24-hour hotline service and arrive at the customer site within the promised time
Second, Siemens original technical support, complete internal procedures
Third, ample spare parts library, updated regularly according to customer needs
Fourth, standard and professional training
5. Strong service and support
