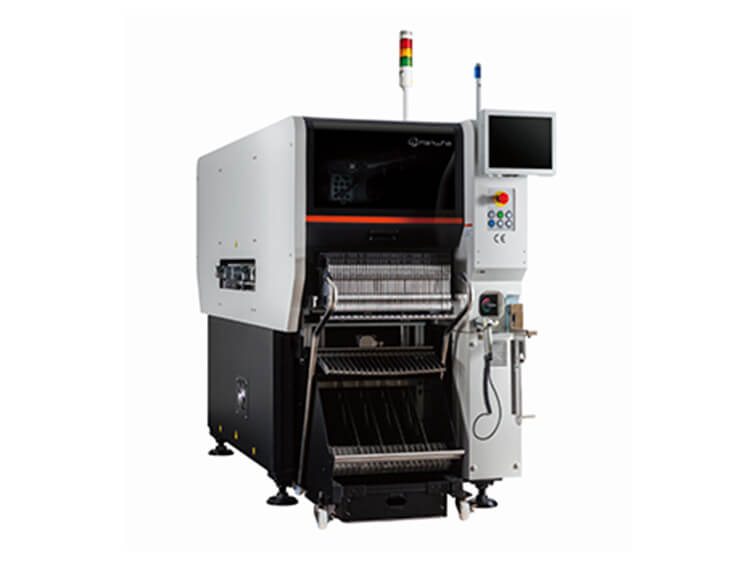

Hanwha HM520 HS Chip mounter

Hanwha HM520 HS Chip mounter

Hanwha HM520 HS Chip mounter

The HM520 HS series mos are a state-of-the-art high-speed modular with extreme flexibility.

· Actual productivity is highest among machines of the same class
· Optimized to high quality production
· Unmanned, non-stop and zero defect using the Smart Factory S/W Solution

Specifications
Alignment :Fix Camera
Number of Spindles: 20 spindles x 2 Gantry (Rotary Type)
Placement Speed: 80,000 CPH
Placement Accuracy: ±25 μm @ Cpk ≥ 1.0 (Chip)
Component Range: 0201 ~ □ 6 mm

High Speed

20 Spindle Head (Rotary Type)
Recognizes 20 spindles quickly at a with the fix camera by designing the head to be and light.

High Reliability

Prevents Non-insertion by the Side View Camera
Checks for the existence of a nozzle and the posture of a picked component during production, and inspects the state before and after the component placement to prevent non-placement of the component.

Flexible Production
Family Job Change
Minimizes the mo changing by arranging the feeders and nozzles in common when producing family mos.

Easy Operation
LED Rank / Random
Possible to register components different by LED rank and arrange placement points at random by LED or.

Keyword:

JUKI RS-1R pick and place machine, JUKI RX-7R pick and place machine, Hanwha SM481 Plus Pick and Place Machine, SMT pick and place machine, JUKI Pick and place Machine, Samsung Pick and Place Machine, Yamaha Pick and Place Machine, Panasonic Pick and Place Machine, FUJI Pick and Place Machine, Siemens Pick and Place Machine.

Shenzhen Qituo electronic Co., Ltd provide a full SMT assembly line solutions, including SMT Reflow Oven,  Wave Soldering Machine,  Pick and Place Machine,  SMT Stencil Printer,  SMT AOI SPI Machine,  SMT Peripheral Equipment,  SMT Assembly line,  SMT Spare Parts etc any kind SMT machines you may need, please contact us for more information: wechat whatsapp:+8617748683433,  Email: sales@qismt.com

FAQ
1) This is the first time I use this kind of machine, is it easy to operate?
There is English manual or guide video that show you how to use machine.
If you still have any question, please contact us by e-mail / skype/ phone /trademanager online service.
2) If machine have any problem after I receive it, how can I do ?
Free parts send to you in machine warranty period.
If the part is less than 0.5KG, we pay the postage.
If it exceeds 0.5KG, you need to pay the postage.
3) MOQ ?
1 set machine, mixed order is also welcomed.
4) How can I buy this machine from you? ( Very easy and flexible !)
A. Consult us about this product on line or by e-mail.
B. Negotiate and confirm the final price , shipping , payment methods and other terms.
C. Send you the proforma invoice and confirm your order.
D. Make the payment according to the method put on proforma invoice.
E. We prepare for your order in terms of the proforma invoice after confirming your full payment.
And 100% quality check before shipping.
F.Send your order by air or by sea.
5)Why choose us ?
A. Gold supplier on Alibaba !
B. Trade assurance to US$54,000 !
C. Best price & Best shipping & Best service !
