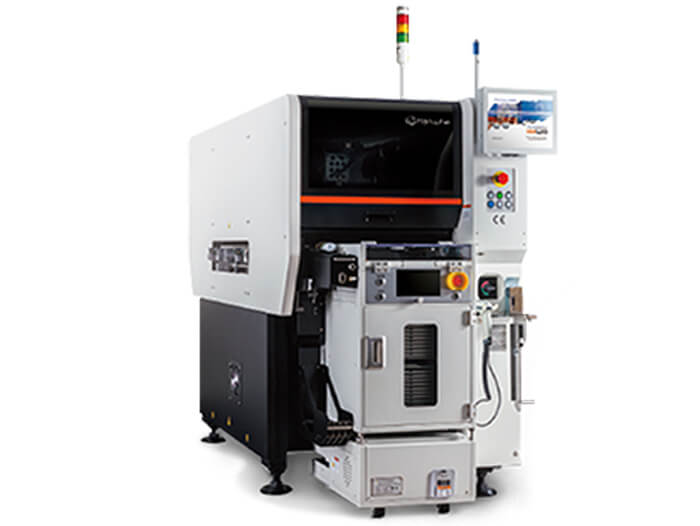

Hanwha HM520 MF Chip mounter

The Hanwha HM520 MF series mos are a state-of-the-art high-speed modular with extreme flexibility.
· Actual productivity is highest among machines of the same class
· Optimized to high quality production
· Unmanned, non-stop and zero defect using the Smart Factory S/W Solution

Hanwha HM520 MF Chip mounter

Features

Multi Function

6 Spindle Head (Piano Type)

Applicable to the placement of a wide range of components from chips of standard components to odd-shape components.

High Reliability

Applies Height Sensor

Picks up a component using the height sensor without pering separate teaching and automatically corrects the difference in the placement height due to PCB warping.

Flexible Production

Applicable Range of Components

Possible to place components from 0402 to a maximum of 55mm components, with a height of a maximum of 15mm.

Easy Operation

Convenient Nozzle Management

The fiducial camera recognizes the bar of the ANC and nozzles to ensure optimum nozzle rearrangement on the ANC block, as well as ANC block change by one touch.

Model	HM520 MF
Number of Heads		Double Gantry 6 Heads (12 total)
Placement Speed		60,000 CPH (Vision Optimum)
Placement Accuracy	Chip	±40µm Cpk ≥ 1.0 Chip
	IC	±30µm Cpk ≥ 1.0 Chip
Components	Dimension	0402 - 55m
	Max Height	15mm
PCB Dimension (mm)	Single	- 50 x 40 - 510 x 580mm (Standard)  - 50 x 40 - 750 x 580mm (Option)
	Double	- 510 x 310mm (Standard) - 750x330mm (Option)
PCB Thickness (mm)		0.3 - 4.2
Feeder Capacity (8mm standard)		80ea (8mm Docking Cart)
Utility	Power	Voltage: AC200/208/220/240/380/41SV±10% 3phase  Frequency : S0/60Hz
	Air Consumption	100NI/min
Weight		1,605kg
External Dimension (LxDxH mm)		890x2,312x1,921
