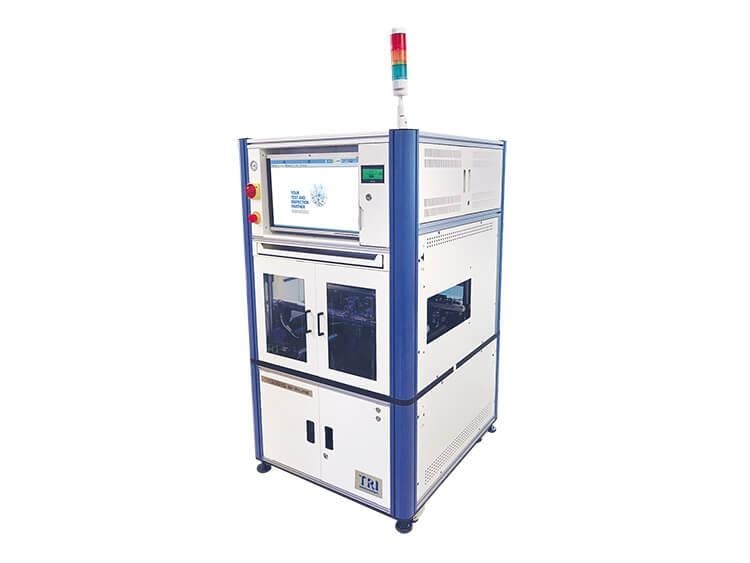

In-Circuit Tester TRI ICT TR5001 SII LED SERIES

Max PCB Size: 500 x 460 mm
Weight: 670 kg
Dimension: 900 x 1180 x 1887 mm
Product description: In-Circuit Tester TRI ICT TR5001 SII LED SERIES, Max PCB Size: 500 x 460 mm, Weight: 670 kg, Dimension: 900 x 1180 x 1887 mm

In-Circuit Tester TRI ICT TR5001 SII LED SERIES

he TR5001 SII LED Series is TRI's latest ICT+FCT innovation dedicated for LED lighting Test, equipped with up to 1080 LED Test Channels. The ICT+FCT solution offers advanced performance Multi-Core Parallel testing with up to 4 independent cores, and durable Quick Disconnection Interface together with built-in auto-calibration and self-diagnostics ensure long-term testing reliability. The TR5001 SII LED Series is suitable for the Automotive Industry LED Lighting Testing.

• Multi-Core Parallel Test
• In-System LED Analyzer
• Non-Multiplexing 1:1 per Pin Architecture
• Scalable MDA to ICT and Functional Test
• High Accuracy and High Throughput
• Test up to 1080 LED Channels
• Durable Quick Disconnection Interface
• Automatic Conveyor Width Positioning
• Board Warp and Misalignment Notification

Tester Specifications
Analog/hybrid test points	2048
Operating System	Microsoft® Windows compatible PC with USB, Windows 10
Fixture Type	Inline or Offline with Long Lifespan Quick Disconnection Interface
Standard Testing Components
Analog Test Hardware	6-wire measurement switching matrix
	Programmable AC/DC/DC High voltage and current sources
	AC/DC voltage, DC current measurement
	Component R/L/C measurement
In-Tester LED Analyzer
Repeatability	1%
LED Channels	Up to 1080 LED Test channels. (Top: up to 540 / Bottom: up to 540.)
Fixture Connection	Quick Disconnection Interface (QDI)
Optional Components
Analog Hardware	TestJet vectorless open circuit detection
Analog Hardware	Arbitrary Waveform Generator
Digital Testing	Non-multiplexing 1:1 per pin architecture with independent per-pin level setting
	Serial Test Controller (STC) Programming
	DUT power supplies: 5 V@3 A, 3.3 V@3 A, 12 V@3A, -12 V@1 A and 24 V@3 A
	DPS Programmable DUT Power supply :
	(1) DPS3514: 30Vmax/5Amax/100Wmax per channel /4CH per DPS
	(2) DPS3122: 30Vmax/10Amax/200Wmax per channel /2CH per DPS
	Programmable DUT power supplies: 75 V / 8 A max, 200W maximum output power
	Includes BScan Chain Test, BScan Cluster Test, BScan Virtual Nails Test, BScan Virtual Chain Test and IEEE1149.6 Test
	Up to 8 High Speed Serial Ports, On-board Flash, EEPROM, MAC programming
Yield Management System	YMS 4.0
Board Handling
Min. PCB Size	70 x 70 mm
Max. PCB Size	500 x 460 mm
PCB Thickness	0.6 - 5 mm
Dimensions
WxDxH	TR5001(D/Q) SII INLINE: 900 x 1180 x 1887 mm*
	TR5001(D/Q) SII QDI: 1200 x 950 x1850 mm
	Note: not including signal tower,signal tower height: 392 mm
Weight	TR5001(D/Q) SII INLINE: 670 kg
Weight	TR5001(D/Q) SII QDI: 510 kg
