In-Circuit Tester TRI ICT TR5001E SII

max PCB: 420 x 300 mm
Weight: 670 kg
Dimension: 1000 x 900 x 1680 mm
Product description: In-Circuit Tester TRI ICT TR5001E SII, max PCB: 420 x 300 mm, Weight: 670 kg, Dimension: 1000 x 900 x 1680 mm

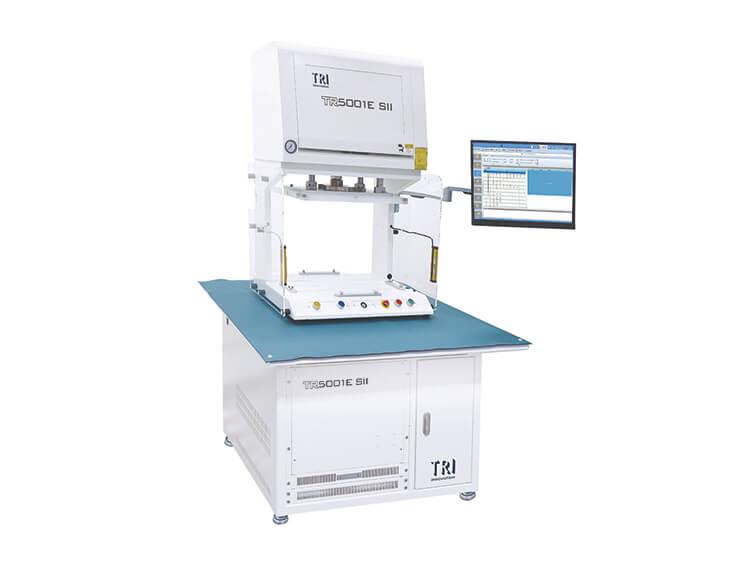

In-Circuit Tester TRI ICT TR5001E SII

The TR5001E SII provides an economical, customizable solution that can fully meet the testing requirements of most customers. The TR5001E SII incorporates MDA with selectable ICT and Functional test capabilities that cut production line staff. The ICT platform has built-in auto-calibration and self-diagnostics to ensure long-term testing reliability.

• Modular upgrade options from MDA to ICT and functional test
• Built-in Self Diagnostics and Auto-Calibration function
• High Speed and Accuracy Measurement and Testing
• Friendly UI with fast and easy program development

Tester Specifications
Analog/hybrid test points	TR5001E SII: 3456
Analog/hybrid test points	TR5001E SII INLINE: 2496
Operating System	Microsoft® Windows 10
Fixture Type	Inline or Offline Press Type. Inline with Long Lifespan Quick Disconnection Interface
Standard Testing Components
Analog Test Hardware	6-wire measurement switching matrix
	Programmable AC/DC/DC High voltage and current sources
	AC/DC voltage, DC current measurement
	Component R/L/C measurement
Optional Components
Analog Hardware	TestJet vectorless open circuit detection
Analog Hardware	Arbitrary Waveform Generator
Digital Testing	Non-multiplexing 1:1 per pin architecture with independent per-pin level setting
	DUT power supplies:
	(1) 5 V@3 A, 3.3 V@3 A, 12 V@3A, -12 V@1 A and 24 V@3 A
	(2) Programable Power (2 CH): 0.2 – 3 V@2 A max. or 3 – 24 V@3 A max.
	DPS Programmable DUT Power supply :
	(1) DPS3514: 30Vmax/5Amax/100Wmax per channel /4CH per DPS
	(2) DPS3122: 30Vmax/10Amax/200Wmax per channel /2CH per DPS
	(3) APPS7508: 75 V max. / 8 A max. / 200 W max.
	Boundary Scan: Includes BScan Chain Test, BScan Cluster Test, BScan Virtual Nails Test, BScan Virtual Chain Test and IEEE1149.6 Test
	On-board Flash, EEPROM, MAC programming
	ToggleScan Test: Advanced Test Technology that Combines with BScan and Vectorless Test Functions to Detect Pin Open or Short Issues
Yield Management System	YMS 4.0
Industry 4.0 Standards	IPC-Hermes-9852, IPC-CFX
Board Handling
Max. PCB Size	TR5001E SII: Standard- 420 x 300 mm, Optional- 600 x 350 mm
Max. PCB Size	TR5001E SII INLINE: Standard- 450 x 300 mm, Optional- 500 x 360 mm
PCB Thickness	0.6 - 5 mm
Dimensions
WxDxH	TR5001E SII: 1000 x 900 x 1680-1700 mm
	TR5001E SII INLINE: 900 x 900 x 1640 mm
	Note: not including signal tower,signal tower height: 392 mm
Weight	TR5001(D/Q) SII INLINE: 670 kg
Weight	TR5001(D/Q)L SII INLINE: 720 kg
