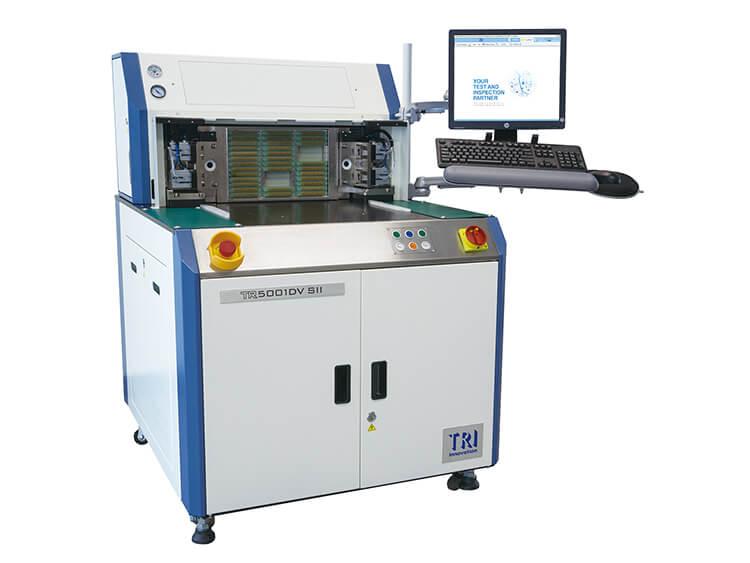

In-Circuit Tester TRI ICT TR5001V SII SERIES

Weight: 350 kg
Dimension: 900 x 1080 x 1270 mm
Product description: In-Circuit Tester TRI ICT TR5001V SII SERIES, Weight: 350 kg, Dimension: 900 x 1080 x 1270 mm

In-Circuit Tester TRI ICT TR5001V SII SERIES

Top-of-the-line multi-core parallel vacuum ICT+FCT solution. TR5001V SII Series offers breakthrough performance with up to 4 independent cores for high throughput. Includes durable Quick Disconnect Interface together with built-in auto-calibration and self-diagnostics ensure long-term testing reliability. TR5001V SII Series is powered by TRI's flow-based Smart Programming Software for ease of use.

• Multi-Core Parallel Test
• Reliable Vacuum Fixture Testing
• Non-Multiplexing 1:1 per Pin Architecture
• Scalable MDA to ICT and Functional Test
• High Accuracy and High Throughput
• Durable Quick Disconnection Interface

Tester Specifications
Analog/hybrid test points	TR5001QV SII: 4096
	TR5001DV SII: 3328
	TR5001V SII: 3456
Operating System	Microsoft® Windows compatible PC with USB, Windows 10
Fixture Type	Vacuum fixture with Quick Disconnection InterfaceStandard Testing Components
Standard Testing Components
Analog Test Hardware	6-wire measurement switching matrix
	Programmable AC/DC/DC High voltage and current sources
	AC/DC voltage, DC current measurement
	Component R/L/C measurement
Optional Components
Analog Hardware	TestJet vectorless open circuit detection
Analog Hardware	Arbitrary Waveform Generator
Digital Testing	Non-multiplexing 1:1 per pin architecture with independent per-pin level setting
	Serial Test Controller (STC) Programming
	DUT power supplies: 5 V@3 A, 3.3 V@3 A, 12 V@3A, -12 V@1 A and 24 V@3 A
	DPS Programmable DUT Power supply :
	(1) DPS3514: 30Vmax/5Amax/100Wmax per channel /4CH per DPS
	(2) DPS3122: 30Vmax/10Amax/200Wmax per channel /2CH per DPS
	Programmable DUT power supplies: 75 V / 8 A max, 200W maximum output power
	Includes BScan Chain Test, BScan Cluster Test, BScan Virtual Nails Test, BScan Virtual Chain Test and IEEE1149.6 Test
	Up to 8 High Speed Serial Ports, On-board Flash, EEPROM, MAC programming
Yield Management System	YMS 4.0
Dimensions
WxDxH	900 x 1080 x 1270 mm
Weight	TR5001QV SII: 370 kg
	TR5001DV SII: 350 kg
	TR5001V SII: 350 kg
