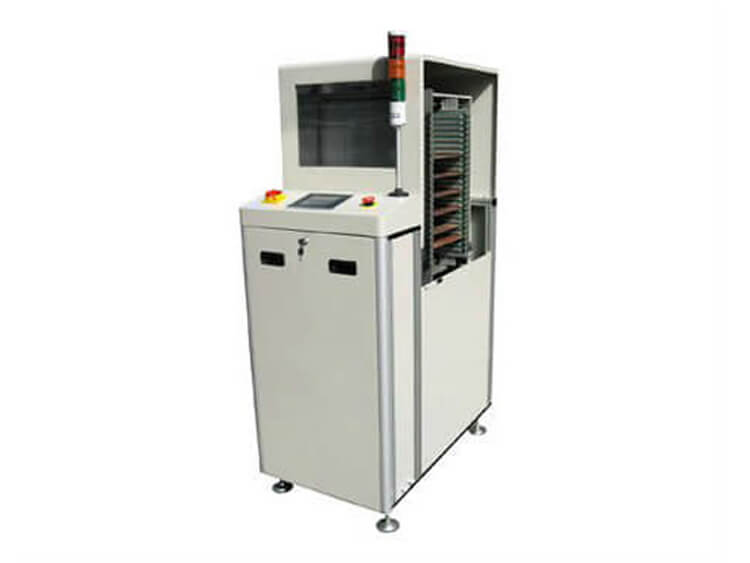

PCB loader Buffer Stocker

Demensions:600 x 1000 x 1600mm
PCB width:50-400mm
PCB Length:Max 460mm
Pitches:10,20,30mm
Product description: PCB loader Buffer Stocker, Demensions:600 x 1000 x 1600mm, PCB width:50-400mm, PCB Length:Max 460mm, Pitches:10,20,30mm

PCB loader Buffer Stocker


PCB loader Buffer Stocker

The Buffer Loader can be used as a mid-line loader or unloader, as a LIFO and FIFO buffer between SMD assembly, Connect with SMT and AI productions line.

Straight-through may be selected so that PCB is conveyed by it, or Automatic may be selected so that this machine is used as a PCB buffer loader. (Automatic or

Straight-through may be selected for this machine. When Automatic is selected and if the preceding machine is turning out PCB too fast but the following machine is feeding

PCB too slowly, more PCB will be stored in this machine and sent out as long as the following machine needs it; When Straight-through is selected, this machine will be used

as a conveying table.)

Features

1. Servo motor, PLC Control system, HMI control panel.

2. 3 operative modes: FIFO buffer, LIFO buffer, pass through.

3. 24pcs PCBs can be stored temporarily, width adjustable.

4. Direction from left to right or right to left(optional).

5. SMEMA compliant.

Specifications

Model	BL-800A
Power	AC 110/220V ±10V, 50/60HZ
PCB Width	50 - 400mm(other specification on request)
PCB Length	Max. 460mm(other specification on request)
Buffer capacity	Max. 24 PCBs at pitch 10mm
Transport Height	900 ±20mm
PCB Direction	left to right (option: right to left)
Pitches	10,20,30mm
Machine Dimension	600 x 1000 x 1600mm
