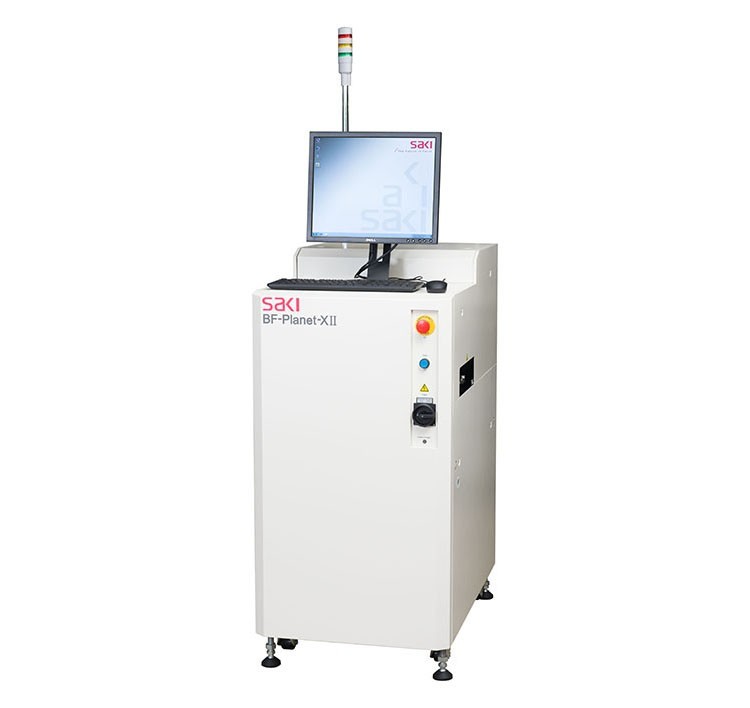

For M-size boards, this inline, high-speed, space-saving model, at only 60cm wide, has the smallest footprint in its class. It handles boards of 330x250mm and scans them in only 4 seconds.

BF-PLANET XII
By employing large-size telecentric lens optical system, BF-Planet-XII provides accurate and stable inspection results with 10um resolution. The machines correct brightness over the whole sample and compensate position aberration in real time while image is scanned, which will contribute to a stable imaging capability over time. In addition, a variety of algorithms and lighting types are available to deal with a wide range of inspection requirements in industry.
Multiple data handling capabilities are provided such as switching settings by barcode reading and data output to customers’ data server in order to cope with line requirements flexibly.
High Resolution Imaging System

With a superior resolution of 10μm and scanning line color CCD camera, BF-Planet-XII provide accurate and stable inspection results. Solder fillets on components as small as the high density mounted 01005(0402) chip, as well as IC’s with 0.4mm pitch lead are easily inspected and analyzed.
High Throughput

BF-Planet-XII has Saki’s original alternate scanning sys- tem that captures several lighting images in one scan- ning. Newly developed color capturing system enable to make scanning speed twice faster than previous model.   It takes only 9 seconds to capture M-size board [250mm
× 330mm]. Overall tact time including inspection also be- come shortened dramatically.
Advantage of Line Scan Visual Inspection

Extra components on the board can be detected only by setting up one inspection window on the whole board. It is realized by the advantage of line scan method.
Coaxial Overhead Light

Soldering condition is inspected by illuminant irradiation of coax- ial overhead lighting. Inspection is not affected by shadowing by neighboring tall components, therefore same library is available at any location on the board.

New Interface

Renewed user interface makes it easier to set up inspection data by using pre-installed Saki standard library. And optional new

function KPK, that finds out the difference between surface of
the board and the surface of component automatically, simplifies to detect missing component. This realizes time reduction for in- spection data making at launching production.
Flexibility

BF-Planet-XII has 40mm clearance at the top side of the board and 40mm at the bottom side. It enables most of the PCBs with tall components. In addition, BF-Planet-XII can be used in any stage of the PCB production process from post-print, post- mounter, and post-flow / re-flow, or manual mounting.
Traceability

Optional function of BF-Planet-XII can read all types of Barcode and 2D code on the board. Inspection output is reported with code number. It enables easy SPC data handling and log data management on manufacturing lines.
