SMT Ionic Contamination Tester CTM-100

Test Method Static
Sensitivity 0.001uS/cm
Tank Size(mm) 380 x 300x 50
Weight （Kg） 42
Product description: SMT Ionic Contamination Tester CTM-100, Test Method Static, Sensitivity 0.001uS/cm, Tank Size(mm) 380 x 300x 50, Weight （Kg） 42

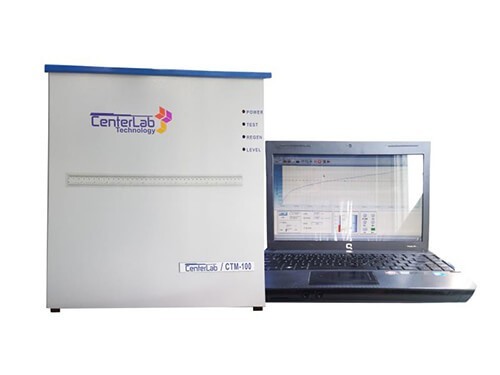

SMT Ionic Contamination Tester CTM-100


SMT Ionic Contamination Tester CTM-100

Machine Description:
Centerlab CTM series are designed for fast and accurate ionic contamination testing, Offers a full range of capacity and control to meet

the needs of any lab or manufacturer..
Machine Feature:
1.Provide an accurate, repeatable, rapid method for ionic contamination testing.
2.Determine the Cleanliness of bare boards, assemblies with SMT devices, electronic Components and other assembled printed circuits.
3.Comply with current industrial specifications such as IPC-TM-650, MIL-STD-2000A, MIL-P-28809, DEF-STD-10/03, IEC…
4.Test tank specially designed for complete ionic contamination extraction.
5.Test tank changeable, tank can be mad on customer’s request.
6.More reasonable control mechanism to ensure accurate test.
7.Combine perfectly Dynamic/Static test method in one equipment.
8.Easy-use Software, friendly interface, English/Chinese language.

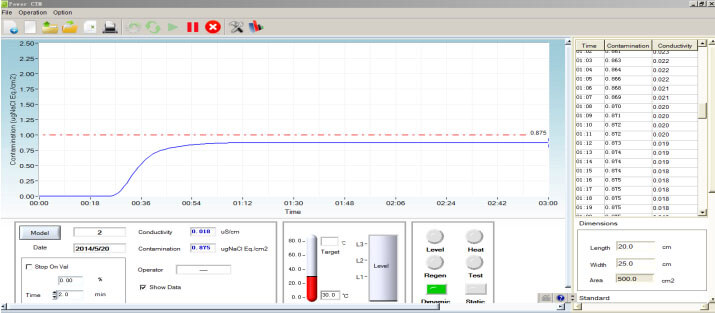

Test Software:Power CTM
1.Windows work environment(windows7, window xp, etc)


Machine Spec:

Model No.	CTM-100	CTM-500D	CTM-500S	CTM-500DS
Test Method	Static	Dynamic	Static	Dynamic/Static
Level Adjustmet	N/A	Y	Y	Y
Sensitivity	0.001uS/cm	0.001uS/cm	0.001uS/cm	0.001uS/cm
Solution Capacity(L)	10	15	15	15
Tank Size(mm)	380 x 300x 50 （customizable）	500 x 500 x 45 （customizable）	500 x 500 x 45 （customizable）	500 x 500 x 45 （customizable）
Sample Size(mm)	350 x 280 x 50 （customizable）	480 x 400 x 45 （customizable）	480 x 400 x 45 （customizable）	480 x 400 x 45 （customizable）
（Overall Size） (mm)(L x W x H)	500x 320 x 550	890 x 430 x 1090	890 x 430 x 1090	890 x 430 x 1090
Heater	N/A	Y	Y	Y
Max Operating Temp(℃)	N/A	45	45	45
Weight （Kg）	42	82	78	85
Power Requirements	220V AC, 50Hz, 1A	220V AC, 50Hz, 1A	220V AC, 50Hz, 4A	220V AC, 50Hz, 4A
