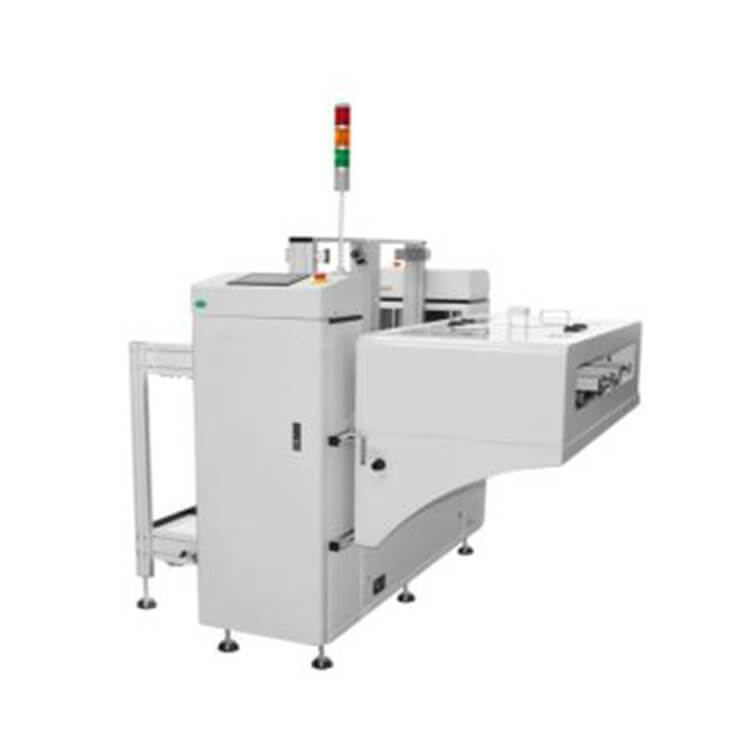

SMT PCB NG/OK Unloader Machine

Dimension: 1730*1530*1250
SMT PCB NG/OK Unloader Machine
Weight: Approx.: 340kg
PCB Size: 50*50 to 530*460
Product description: SMT PCB NG/OK Unloader Machine

SMT PCB NG/OK Unloader Machine


SMT PCB NG/OK Unloader Machine

Features
1.PLC+Touch screen control , easy to operate.
2.Design with firm structure.
3.The upper and lower air clamps ensure the location of the material box accurately.
4.Special gas path design ensures that the PCB panel is not pushed.
5.Automatic detection of fault code display function.
6.With SMEMA signal .

Control System
1	power supply	Single phase 220V
2	Starting power / no-load power	200W
3	Lifting step	10, 20, 30, 40, (mm) can be set arbitrarily
4	Compressed air	5-6KG
5	Fixed edge	Front fixed (can be customized and fixed)
6	Transfer direction	Left to right (can be customized right to left)
7	Transfer height	900±20mm
8	Step selection	1~5 steps (10mm\step)
9	Withstand voltage	AC terminal to ground 1500VAC, 1 minute
10	Use environment	Non-corrosive gas and dust environment
11	Anti-interference	Voltage noise: 1000Vp-p, wave width 1us, 1 minute
12	Transfer connection push PCB board	Stepper motor (42*48)
13	Parallel transfer of NG\OK PCB	Using 86 high precision stepper motor
14	Translational transmission	Imported wire belt timing belt
15	NG line number	Automatically move to the NG storage box (the storage bin can automatically enter and exit)
16	OK line number	Automatically enter the OK box through the translation stage
