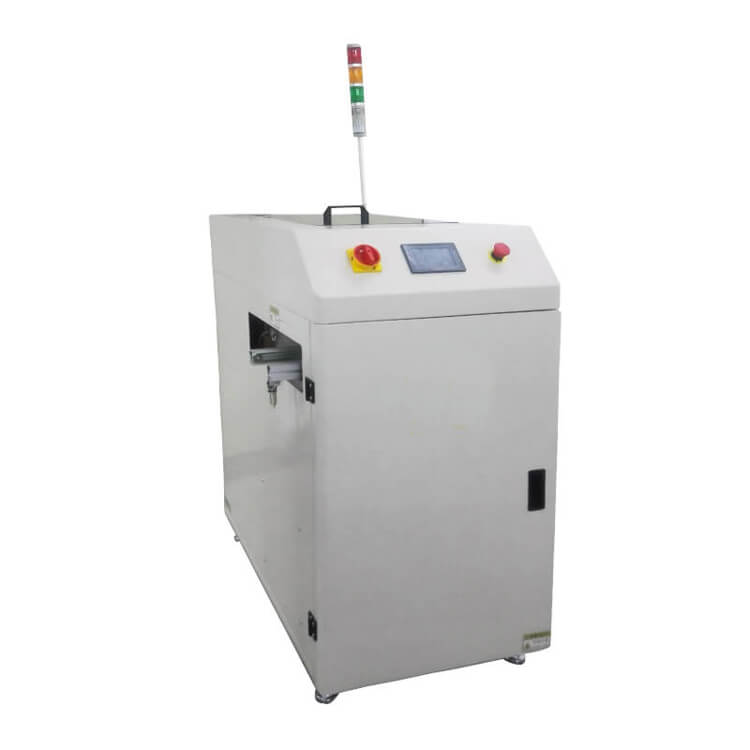

SMT PCB Vacuum Loader Suction loader

Power Source: 220-230VAC
Maximum PCBs Capacity 300 pcs
Cycle Time Approx. 6 seconds
Power Consumption 180VA max
Product description: SMT PCB Vacuum Loader Suction loader Bare Board Loader, Power Source: 220-230VAC, Maximum PCBs Capacity:300 pcs, Cycle Time Approx. 6 seconds

SMT PCB Vacuum Loader Suction loader


SMT PCB Vacuum Loader Suction loader

Application

The SMT PCB vacuum loader we produced is mainly used to transport and shift the PCB board products and parts. It can realize labor cost saving,

product precision and yield improving and manual error reducing and product quality improving by automatic operation.

Technical parameter

Maximum PCBs Capacity	300 pcs (1.0mm thick PCB)
Cycle Time	Approx. 6 seconds
Power Source	220-230VAC (specify), 1ph
Power Consumption	180VA max
Air Pressure	4-6 bar
Air Consumption	30 Ltr/min max
Conveyor Height	900±20mm (or specify)
PCB Conveyor Direction	L→R / R→L(Option)
Effective PCB Size (L×W)~(L×W)	(50x50)~(500x350)
Dimension (L×W×H)	600x 1020x1250mm
Weight	Approx.110kg

Working principle of SMT PCB vacuum loader

The SMT PCB vacuum loader can suck up the PCB board to be processed for printing and soldering by using vacuum absorption under no-dust

environment. By using this principle, the position of the substrate can be controlled precisely to protect the substrate from being damaged by contacting

with other medium.

Features
1. The SMT PCB vacuum loader is closed when it is working to reduce noise and ensure operating safety.
2. The top safety caps can be opened for machine hardware maintenance.
3. It is equipped with intelligent touch screen control interface which is quite convenient.
4. The position of suction nozzle is adjustable to ensure that the PCB board can be clamped.
5. It is equipped with stable width adjustment device (manual screw control).
6. It has small floor space.
7. It is equipped with compatible SMEMA port.
