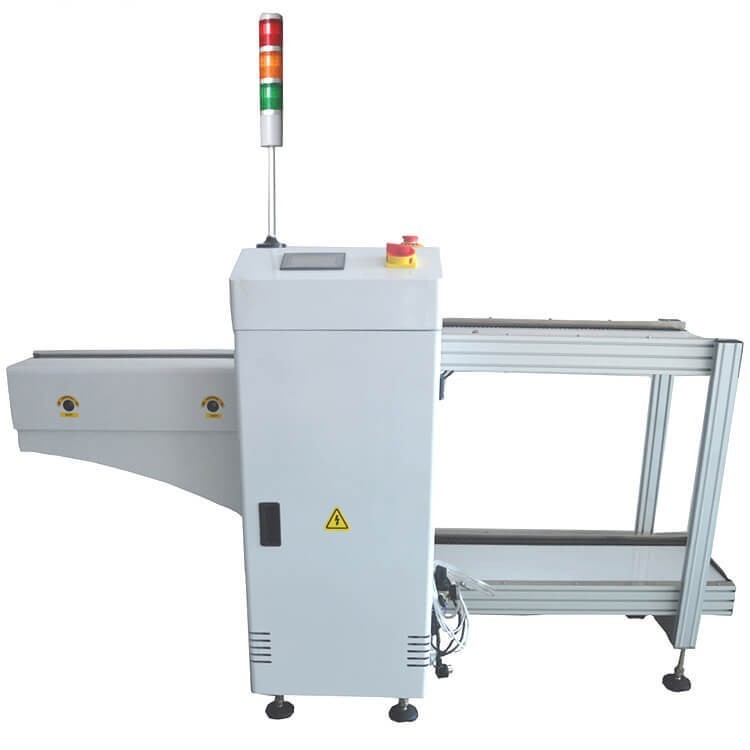

SMT PCB magazine Unloader

Demensions:1950(L)×680(W)×1650(H)mm
PCB size: 50x50 - 390x400mm
SMEMA compliant
Lift platform pitch selection:50pcs
Product description: SMT PCB magazine Unloader Factory, Demensions:1950(L)×680(W)×1650(H)mm, PCB size: 50x50 - 390x400mm, Lift platform pitch selection:50pcs

SMT PCB magazine Unloader


SMT PCB magazine Unloader

pitch selection:50pcs

1)Machine Size(L*W*H):L2300*W980*H1200mm

2)Special Aluminum alloy guide rails and rubber belt

3)Magazine lifting with screw rod by 90W electric-brake motor which made in Taiwan

4)Pneumatic PCB clamping structure

5)Attach one set 0.7m length pcb conveyor

6)Magazine size(L*W*H): (L)535*(W)460*(H)565mm

7)PCB max size(L*W):(L)500*(W)390mm

8)Direction:R-L/L-R

9)Adjustable Lifting distance:10,20,30,and 40mm

10)Programmable Mitsubishi PLC and controller

11)PCB Automatic loading to conveyor

12)Operation Control system: Touch Panel controlled interface

13)Power: 220V 50HZ

14)Air pressure: 0.4-0.6MPa

15)the max store PCB Quantity:50pcs

16)One set Electronic control box

Features
Model		Auto Unloader
Item	Product	Describtion
1	Auto SMT Unloader	1 Dimension:1950(L)×680(W)×1650(H)mm
		2 Special aluminum guide rail and special chain;
		3 90WSPG Brake motor drive the ball screw,Make Magazine lift;
		4 Pneumatic clamping structure
		5 Magazine Size :300(W)×340(L)×570(H)mm
		6 PCB Size :60(W)×60(L)mm--390(W)×400(L)mm
		7 Direction: R-L or L-R;
		8?Lift platform pitch selection:10?20?30?40?50
		9 Siemens PLC control system;
		10 auto upper function;
		11 Control panel is touch screen;
		12 Power :0.25KW
		13 Power supply:220V 50HZ
		14 Air Supply:4-6MPa

Keyword:

JUKI RS-1R pick and place machine, JUKI RX-7R pick and place machine, Hanwha SM481 Plus Pick and Place Machine, SMT pick and place machine, JUKI Pick and place Machine, Samsung Pick and Place Machine, Yamaha Pick and Place Machine, Panasonic Pick and Place Machine, FUJI Pick and Place Machine, Siemens Pick and Place Machine.

Shenzhen Qituo electronic Co., Ltd provide a full SMT assembly line solutions, including SMT Reflow Oven, Wave Soldering Machine, Pick and Place Machine, SMT Stencil Printer, SMT AOI SPI Machine, SMT Peripheral Equipment, SMT Assembly line, SMT Spare Parts etc any kind SMT machines you may need, please contact us for more information: wechat whatsapp:+8617748683433, Email: sales@qismt.com

FAQ
1) This is the first time I use this kind of machine, is it easy to operate?
There is English manual or guide video that show you how to use machine.
If you still have any question, please contact us by e-mail / skype/ phone /trademanager online service.
2) If machine have any problem after I receive it, how can I do ?
Free parts send to you in machine warranty period.
If the part is less than 0.5KG, we pay the postage.
If it exceeds 0.5KG, you need to pay the postage.
3) MOQ ?
1 set machine, mixed order is also welcomed.
4) How can I buy this machine from you? ( Very easy and flexible !)
A. Consult us about this product on line or by e-mail.
B. Negotiate and confirm the final price , shipping , payment methods and other terms.
C. Send you the proforma invoice and confirm your order.
D. Make the payment according to the method put on proforma invoice.
E. We prepare for your order in terms of the proforma invoice after confirming your full payment.
And 100% quality check before shipping.
F.Send your order by air or by sea.
5)Why choose us ?
A. Gold supplier on Alibaba !
B. Trade assurance to US$54,000 !
C. Best price & Best shipping & Best service !
