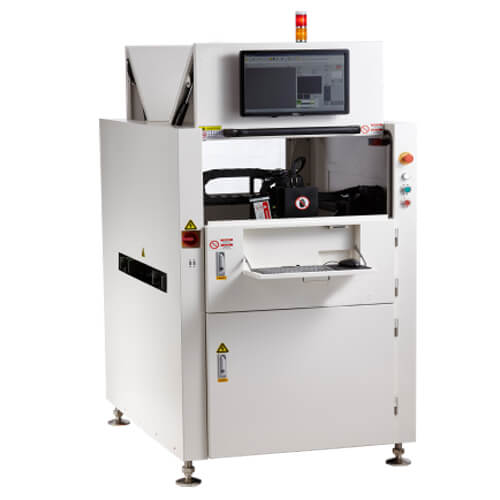

Sinic Tek 3D SPI Machine S450

Measurement Principle

3D white light PSLM PMP(Programmable Spatial Light Modulation,commonly
known as moire fringe technology)

Measurements

Volume,acreage,height, XY offset, shape

Detection of Non - Performing Types

Missing print,insufficient tin, excessive tin, bridging, offset,  mal-shapes, surface
contamination

Camera Pixel

5M

Lens Types

Telephoto lens

Lens Resolution

5M:13.5um

FOV Size

33.3*26.5mm

Accuracy

XY Resolution):1um;Height:0.37um

Repeatability

Height:≤1um (3 Sigma);volume/acreage:<1%(3 Sigma)

Gage R&R

Far less than 10%

FOV  Speed

0.35s/FOV

Quantity of Inspection Head

Single Head (Twin-Heads as option)

Red Green Blue/RGB Three Colas
Option Light Source

Standard  configuration

Mark-point Detection Time

0.5 sec/piece

Compensation Plate Bending
of Real-time Lift in Z-axis

Standard  configuration

Maximum Measure Height

±550um ( ±1200um as option)

Maximum Measure Height of PCB Warp

±5mm

Minimum Pad Spacing

100um ( pad height of 150um as the reference)

Smallest  Measuring Size

100mm

Maximum Loading PCB Size

Dual track model :50*50mm--450*300mm

Single track model :50*50mm--450*590mm

Thickness of the PCB

0.4-7mm

Height Limitations of the Parts

Top30mm,Bottorm40mm

Board Edge Distance

3mm , (multifunctional clip edge  as option)

Flexibility or Fixed Orbit Setting

Front orbit  (back orbit as option)

PCB Transfer Direction

Left to right or right to left

Orbit Width Adjustment

Manual, automatic as option

SPC Statistics

Histogram;X bar- R Chart;X bar- S Chart;CP&CPK;%Gage Repeatability
Data;SPI Daily/Weekly/Monthly Reports

Gerber & CAD Data Imput

Support Gerber format(274x,274d);Manual Teach model ;
CAD X/Y,Part No.,Package Type input

Computer type

Server

CPU

Intel 6-core

RAM

32G

GPU

2G discrete graphics

Hard disk

1T

DVD+RW

Standard  configuration

Operating System

Windows 7 Professional ( 64 bit)

Equipment Dimension and Weight

S:1000x1330x1530mm;1200KG

Power

220V,10A

Air Pressure

4~6Bar

Power (Start / normal)

Start:2.5kw /  Normal operation:2kw

Loading Requirements
of the Floor

800kg/m²

Options(available)

1D / 2D Bar code capability, Bad mark function, printer
