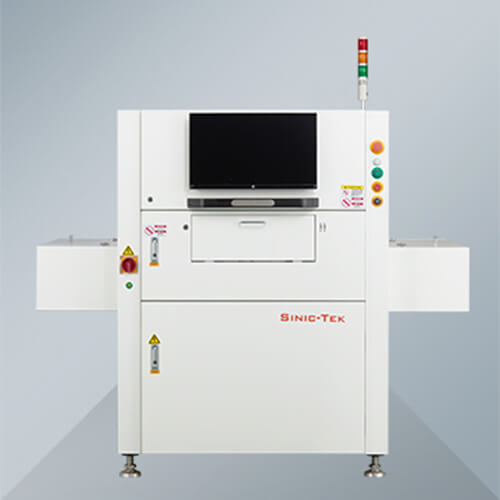

3D In line Solder Paste Inspection Machine InSPIre-1200

3D In line Solder Paste Inspection Machine InSPIre-1200

3D In line Solder Paste Inspection Machine InSPIre-1200

TECHNICAL PARAMETERS:
Inspection Principle: Programmable phase contour modulation measurement techniques(PSLM PMP)
Inspection type:Volume, area, height, XY offset, shape, etc.
Defect Types:shift, excessive solder, insufficient solder, offset, deformed shape, etc.
Smallest component: 01005.
Accuracy: XY=10 um,Height = 0.37 um.
Repeatability: height：≤1um （4 Sigma）;volume/acreage：<1%（4 Sigma）.
Maximum Loading PCB Size(X*Y):1200x550mm.
Inspection Speed: 0.35 SEC/FOV.
Mark-point Detection Time: 0.3sec/piece.
Maximum detection height:±450um（±1200umOption）.
RGB Tune patented technology.
D-lighting patented technology.
Dynamic shape function with static prevent warping function.
Barcode function with traceability.
Closed loop to printers.
Badmark transfer function to mounters.
Access IMS system functions.
Operating System Support: Windows 7 Professional (64 bit).
Five-minute programming, one-click operation.
SPC process control.

Keyword:

JUKI RS-1R pick and place machine, JUKI RX-7R pick and place machine, Hanwha SM481 Plus Pick and Place Machine, SMT pick and place machine, JUKI Pick and place Machine, Samsung Pick and Place Machine, Yamaha Pick and Place Machine, Panasonic Pick and Place Machine, FUJI Pick and Place Machine, Siemens Pick and Place Machine.

Shenzhen Qituo electronic Co., Ltd provide a full SMT assembly line solutions, including SMT Reflow Oven,  Wave Soldering Machine,  Pick and Place Machine,  SMT Stencil Printer,  SMT AOI SPI Machine,  SMT Peripheral Equipment,  SMT Assembly line,  SMT Spare Parts etc any kind SMT machines you may need, please contact us for more information: wechat whatsapp:+8617748683433,  Email: sales@qismt.com

FAQ
1) This is the first time I use this kind of machine, is it easy to operate?
There is English manual or guide video that show you how to use machine.
If you still have any question, please contact us by e-mail / skype/ phone /trademanager online service.
2) If machine have any problem after I receive it, how can I do ?
Free parts send to you in machine warranty period.
If the part is less than 0.5KG, we pay the postage.
If it exceeds 0.5KG, you need to pay the postage.
3) MOQ ?
1 set machine, mixed order is also welcomed.
4) How can I buy this machine from you? ( Very easy and flexible !)
A. Consult us about this product on line or by e-mail.
B. Negotiate and confirm the final price , shipping , payment methods and other terms.
C. Send you the proforma invoice and confirm your order.
D. Make the payment according to the method put on proforma invoice.
E. We prepare for your order in terms of the proforma invoice after confirming your full payment.
And 100% quality check before shipping.
F.Send your order by air or by sea.
5)Why choose us ?
A. Gold supplier on Alibaba !
B. Trade assurance to US$54,000 !
C. Best price & Best shipping & Best service !
