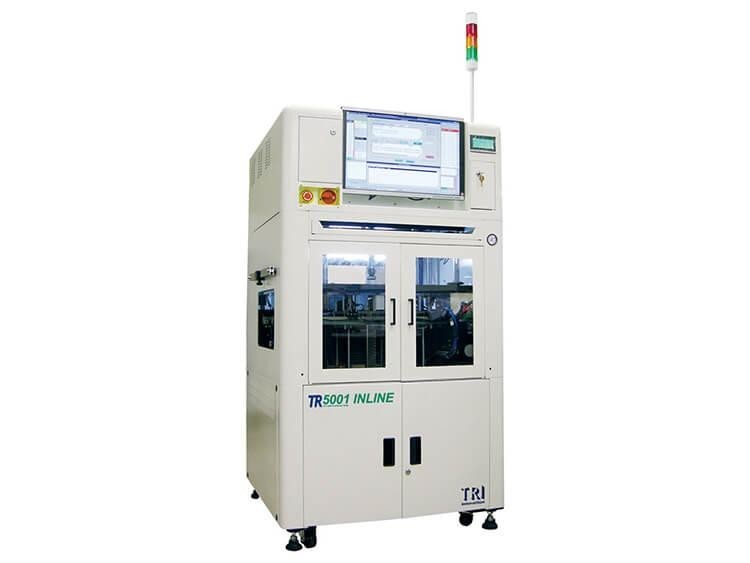

In-Circuit Tester TRI ICT TR5001 INLINE

Max PCB:450 x 300 mm
Weight: 500 kg
Dimension:900 x 900 x 1645 mm
Product description: In-Circuit Tester TRI ICT TR5001 INLINE, Max PCB:450 x 300 mm, Weight: 500 kg, Dimension:900 x 900 x 1645 mm

In-Circuit Tester TRI ICT TR5001 INLINE

Optimized for inline integration, this SMEMA-compatible ICT is designed as an expandable platform for testing PCBAs. The TR5001 IN LINE provides an economical, customizable solution that can fully meet testing requirements of most customers. TR5001 IN LINEincorporates M‌DA with selectable ICT and Functional test capabilities that cut production line staff costs, save testing time and increase productivity.

• Modular upgrade options from MDA to ICT and functional test
• SMEMA compatible inline high fault coverage test solution
• Limited access solution and functional test expansion using PXI modules
• Friendly UI with fast and easy program development

Tester Specifications
Analog/hybrid test points	3200 analog or maximum digital test points: 1600
Operating System	Microsoft® Windows 10
Fixture Type	Inline with long lifespan Quick Disconnection Interface
Standard Testing Components
Analog Test Hardware	6-wire measurement switching matrix
	Measures voltage, current and frequency
	Component R/L/C/D measurement
	60 V high voltage current source for LED strip testing
Optional Components
Analog Hardware	TestJet vectorless open circuit detection
Analog Hardware	Arbitrary Waveform Generator
Digital Testing	Non-multiplexing 1:1 per pin architecture with independent per-pin level setting
	DUT power supplies: 5 V@3 A, 3.3 V@3 A, 12 V@3A, -12 V@1 A and 24 V@3 A
	Programmable DUT power supplies: 75 V / 8 A max, 200W maximum output power
	Includes BScan Chain Test, BScan Cluster Test, BScan Virtual Nails Test, BScan Virtual Chain Test and IEEE1149.6 Test
	On-board Flash, EEPROM, MAC programming
Yield Management System	YMS 4.0
Board Handling
Min PCB Size	70 x 70 mm
Max PCB Size	450 x 300 mm
PCB Thickness	0.6 - 5 mm
Dimensions
WxDxH	900 x 900 x 1645 mm
WxDxH	Note: not including signal tower, height: 515 mm
Weight	500 kg
