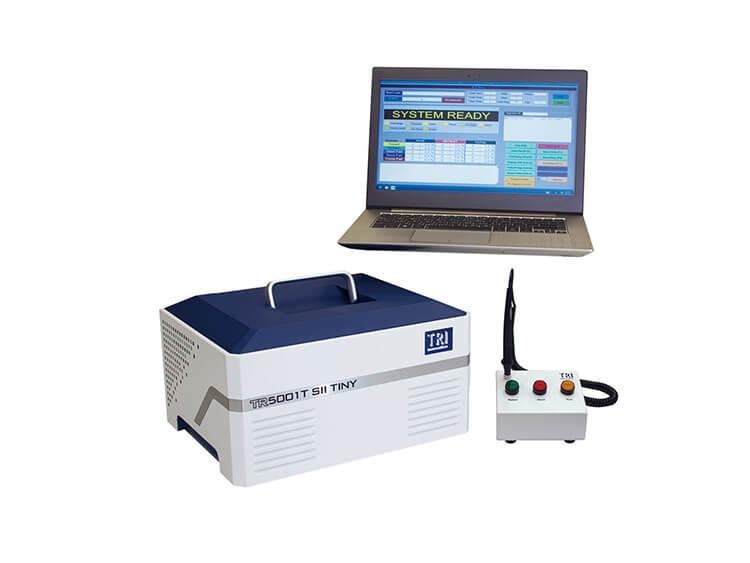

In-Circuit Tester TRI ICT TR5001T SII TINY

Weight: 8 - 11 kg
Dimension: 335 x 260 x 185 mm
Product description: In-Circuit Tester TRI ICT TR5001T SII TINY, Weight: 8 - 11 kg, Dimension: 335 x 260 x 185 mm

In-Circuit Tester TRI ICT TR5001T SII TINY

TR5001T SII TINY is a new generation of TRI's Tiny In-Circuit Tester. Offering up to 640 testing points and extending coverage with Boundary Scan, the TR5001T SII TINY brings an extended ICT feature set in the industry's most compact and affordable solution. The new generation desktop ICT offers powerful board test functionality, Audio analyzer and Data acquisition modules and multiple programmable power supplies for testing devices and LED strips.

• Compact and lightweight full-featured ICT solution
• USB interface for connecting to a notebook or PC
• Boundary Scan Solution with 2 independent TAPs and 16-channel DIO
• Advanced analog and digital testing with programmable DUT power supplies

Tester Specifications
Analog/hybrid test points	640 analog test points
Operating System	Microsoft® Windows 10
Fixture Type	Manual or press type fixture
Standard Testing Components
Analog Test Hardware	• 6-wire measurement switching matrix
	• Measures voltage, current and frequency
	• Component R/L/C/D measurement
	• 60 V high voltage current source for LED strip testing
Optional Components
Analog Hardware	• TestJet vectorless open circuit detection
	• Sine Wave Generator
Digital Testing	• Boundary Scan
	• Data Acquisition and Audio analyzer modules
	• Enhanced Digital Test Module
Yield Management System	YMS 4.0
Dimensions
WxDxH	335 x 260 x 185 mm
	Note: not including PC or accessories
Weight	8 - 11 kg
	Note: not including PC or accessories
