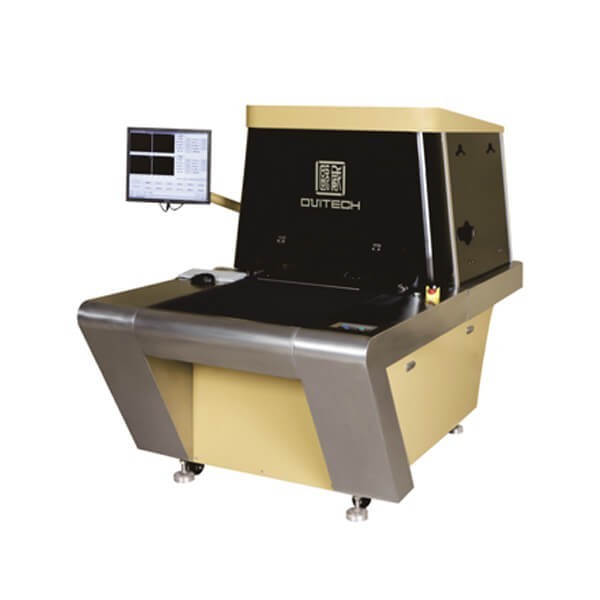

PCB Testing PCB circuit Quality Insepction Machine AOI T11

PCB Testing PCB circuit Quality Insepction Machine AOI T11

PCB Testing PCB circuit Quality Insepction Machine AOI T11

Defects Inspection Range:

More......

Performance  Description
Equipment size：L×W×H 2150mm×1350mm×1780mm
Equipment Weight：1500kg
Working Electric Power: AC 380V± 5% 50 Hz 3.7 KWh Three-phase five-wire (TN-S) system
Standard resources and references：RS-274X GERBER Format  ODB++ Format
Test capability：Line Width/ Line Space down to 2mil
Line Width / Line Space Test method based on size：18″×24″
5mil 4mil 3mil 2mil
Scanning：face/hour   200 face  180face  160face  120face
Table size：26″×28″（660×711mm）
Test Area：24″×26″（610×660mm）
Board Form：Inner/outer；Cabling type including signal、 power supply ground、 mixed shielding、grid and others.
Test Material：plating copper board、 golden board、nickel-plated board、dry / wet film board、FR-4、CEM and flexible board material
Can Detectable Defects：open circuit、short circuit、nicks、burrs、pinholes、copper slag、copper isolated convex circle、 line width / line space irregularities、 leakage drilling、holes shift.
Defect inspection method：elements characteristics of study sub-pixel contour analysis and comparison.
System Software Installation environment：WindowsXP Windows2003  Windows7
Position System：Servo motor positioning system
Mechanical Drive：Precision guides + ball screw transmission system
Illuminant System：LED cold light concentrating highlighted system

Keyword:

JUKI RS-1R pick and place machine, JUKI RX-7R pick and place machine, Hanwha SM481 Plus Pick and Place Machine, SMT pick and place machine, JUKI Pick and place Machine, Samsung Pick and Place Machine, Yamaha Pick and Place Machine, Panasonic Pick and Place Machine, FUJI Pick and Place Machine, Siemens Pick and Place Machine.

Shenzhen Qituo electronic Co., Ltd provide a full SMT assembly line solutions, including SMT Reflow Oven,  Wave Soldering Machine,  Pick and Place Machine,  SMT Stencil Printer,  SMT AOI SPI Machine,  SMT Peripheral Equipment,  SMT Assembly line,  SMT Spare Parts etc any kind SMT machines you may need, please contact us for more information: wechat whatsapp:+8617748683433,  Email: sales@qismt.com

FAQ
1) This is the first time I use this kind of machine, is it easy to operate?
There is English manual or guide video that show you how to use machine.
If you still have any question, please contact us by e-mail / skype/ phone /trademanager online service.
2) If machine have any problem after I receive it, how can I do ?
Free parts send to you in machine warranty period.
If the part is less than 0.5KG, we pay the postage.
If it exceeds 0.5KG, you need to pay the postage.
3) MOQ ?
1 set machine, mixed order is also welcomed.
4) How can I buy this machine from you? ( Very easy and flexible !)
A. Consult us about this product on line or by e-mail.
B. Negotiate and confirm the final price , shipping , payment methods and other terms.
C. Send you the proforma invoice and confirm your order.
D. Make the payment according to the method put on proforma invoice.
E. We prepare for your order in terms of the proforma invoice after confirming your full payment.
And 100% quality check before shipping.
F.Send your order by air or by sea.
5)Why choose us ?
A. Gold supplier on Alibaba !
B. Trade assurance to US$54,000 !
C. Best price & Best shipping & Best service !
