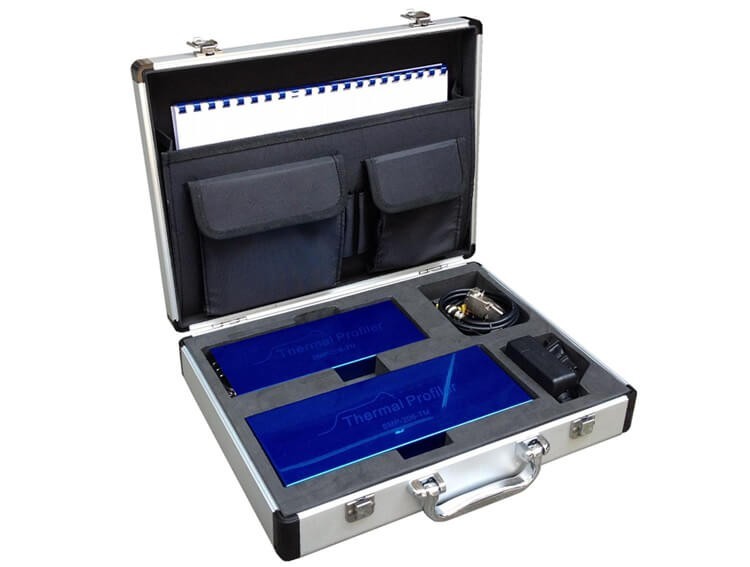

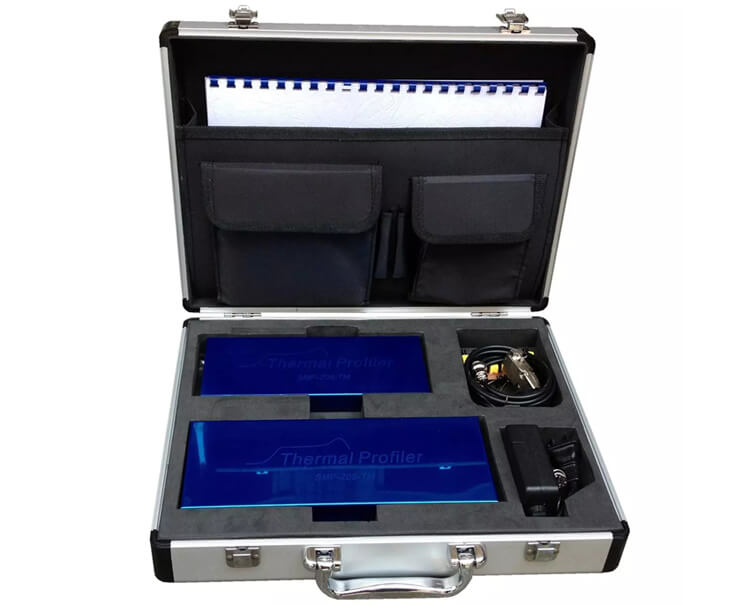

Thermal Profiler for reflow oven

Thermal Profiler for reflow oven

Thermal Profiler for reflow oven

1. 6 channel temperature tester, meeting the requirements of multi-point testing

2. The test range 0-500 ℃, the applicable scope is wide, meet the required lead-free process

3. The Windows operating system, temperature curve contrast, set up the parameter test environment, temperature, time, slope list, a single

curve analysis and other advanced analysis function, have two kinds of print mode, at the same time can get any need of process parameters

4. The guide rail fixture can be adjusted freely according to the width of PCB without adjusting the guide rail width of the furnace body

5. High sensitivity, suitable for reflow soldering and wave soldering

6. Rechargeable battery, saving cost, long service life, 2 hours can be filled; can work for 12 hours continuously, with high production efficiency.

[ specification ]

Project parameters project parameters

Brand IRAM test accuracy + / - 1 ℃ 200 ℃ (test point)

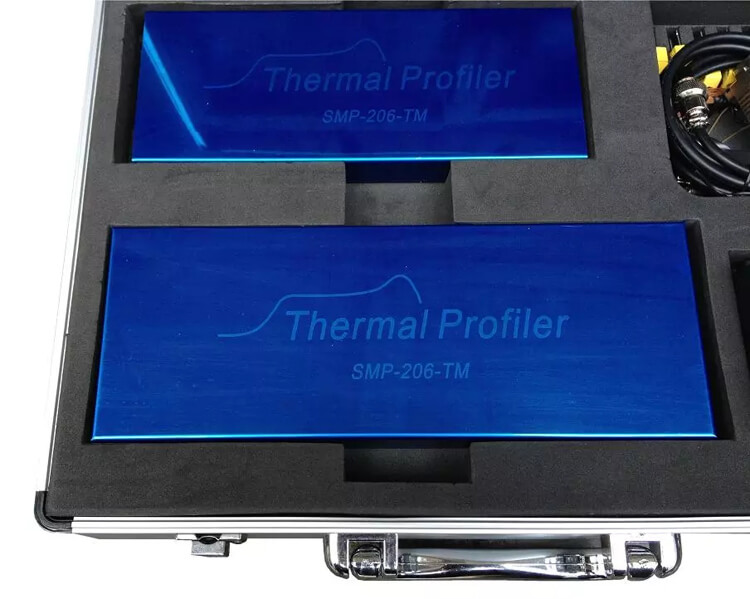

Type the SMP - 206 - TM test range of 0-500 ℃

Overall dimensions 205 w * 85 d * 22 h internal protection temperature up to 70 ℃ for 5 minutes

Heavy 540g software installation platform Windows95,98,2000,ME,XP

Battery specification 3.5v rechargeable battery software installation mode CD

Test channel 6 CH machine material all mechanical parts are stainless steel

The sampling number is 12000
