SMT X Ray machine
Stage size 640mm*540mm
Resolution 1176*1104
Dimension L：1360mm,W：1360mm,H：1650mm
Product description: SMT PCB X Ray machine X-6600, PCB quality inspection equipment, Net weight 1200kg Stage size 640mm*540mm, Dimension L：1360mm,W：1360mm,H：1650mm

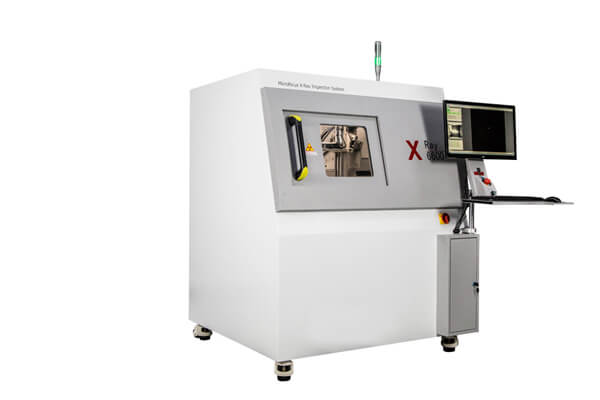

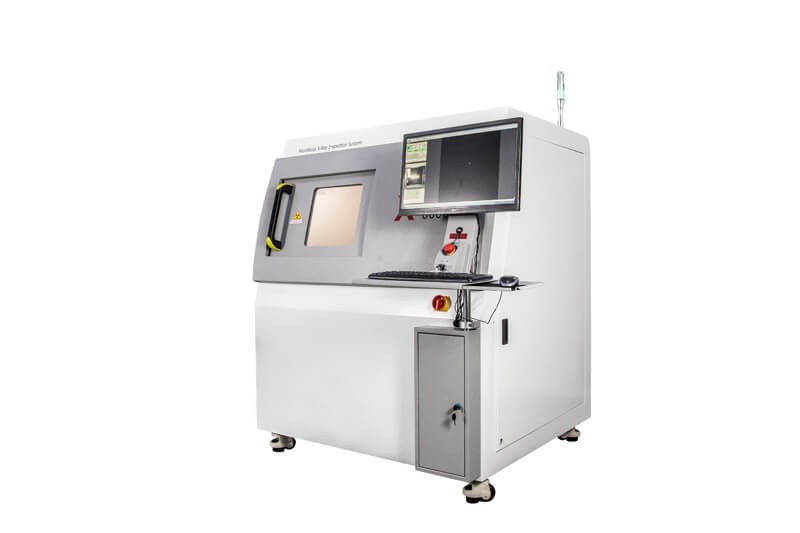

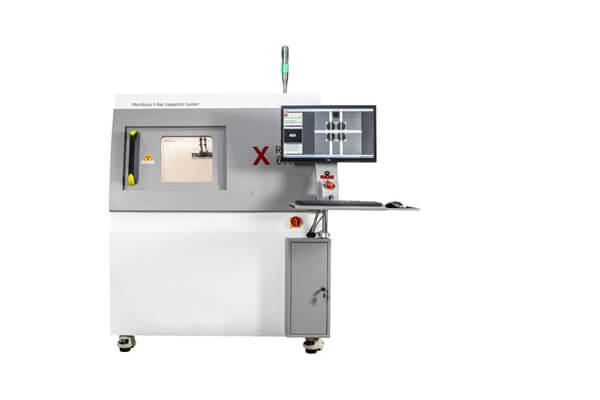

SMT PCB X Ray machine X-6600
SMT PCB X Ray machine X-6600
Application Field
1.Semiconductor package
2.Electronic connector module
3.Die Casting
4.Cars
5.Battery
6.LED
7.PCB'A
8.Other application
Mainly Functions
Functions | Advantages |
X-ray tube and detector can be moved along the Z axis | can be detected the |
Software setting voltage and current | Easy maintenance, with long life |
Can control the speed in X-Y direction | Easy operation，Training time just need 15minutes |
Editable detecting procedures | Suitable for the large batch detecting |
Detectors maximum inclination 70 ° | Semiautomatic to identify OK / NG in Products |
Large navigation window, mouse clicks can move the stage to a position that you need. | High accuracy detection |
Can meet the size for kinds of samples | |
allows a unique perspective to detect sample |
Technical Parameters
Items | Contents | |
Model | X-6600 | |
X-RAY launching tube | Tube Type | Sealed type X-ray Tube |
Maximum tube voltage | 90kV | |
Maximum tube current | 0.2mA | |
Focal size | 5um | |
Magnification | Geometric magnification：150X System magnification：1000X | |
Detector | Image Speed | 30 fps |
Resolution | 1176*1104 | |
Tilt angle | Detector60°Tilting | |
Cabinet Specifications | Stage size | 640mm*540mm |
Dimension | L：1360mm,W：1360mm,H：1650mm | |
Net weight | 1200kg | |
Input voltage | AC 110-220V （+10%）（international general power supply） | |
X-ray leakage amount | ≤1 u Sv/h | |
Operation System | Windows 7 | |
Total power | 1.5Kw | |
Standard configuration
Items | Quantity | Unit | Remark |
90KV-5umSealed type X ray Tube | 1 | PCS | |
Stage | 1 | PCS | Size：640mm*540mm |
Flat Panel Detector | 1 | PCS | High definition |
Image processor CPU | 1 | PCS |
|
LCD Monitor | 1 | PCS | 24’’ |
Stage Control Parts
1.by the space bar to adjust stage speed: Slow, Constant and Fast
2.Keyboard control X, Y, Z axis motion and the inclined angle
3.User can detect the samples automatically by programmed
4.Large navigation window, the image is very clear, mouse clicks will move the stage to a position that you need.
NC programming
1. A simple mouse clicks will create a Testing procedures
2. The stage can be X, Y axis positioning; X-ray tube and the detector will be positioning in Z axis
3. Software setting voltage and current
4. Image setting: Brightness, contrast, automatic gain and exposure
5. user can set the program switch pause time
6. The anti-collision system can meet the maximum tilt and observe objects
7. Automatic analysis BGA diameter, Void ratio, size and roundness
Keyword:
JUKI RS-1R pick and place machine, JUKI RX-7R pick and place machine, Hanwha SM481 Plus Pick and Place Machine, SMT pick and place machine, JUKI Pick and place Machine, Samsung Pick and Place Machine, Yamaha Pick and Place Machine, Panasonic Pick and Place Machine, FUJI Pick and Place Machine, Siemens Pick and Place Machine.
Shenzhen Qituo electronic Co., Ltd provide a full SMT assembly line solutions, including SMT Reflow Oven, Wave Soldering Machine, Pick and Place Machine, SMT Stencil Printer, SMT AOI SPI Machine, SMT Peripheral Equipment, SMT Assembly line, SMT Spare Parts etc any kind SMT machines you may need, please contact us for more information: wechat whatsapp:+8617748683433, Email: sales@qismt.com
FAQ
1) This is the first time I use this kind of machine, is it easy to operate?
There is English manual or guide video that show you how to use machine.
If you still have any question, please contact us by e-mail / skype/ phone /trademanager online service.
2) If machine have any problem after I receive it, how can I do ?
Free parts send to you in machine warranty period.
