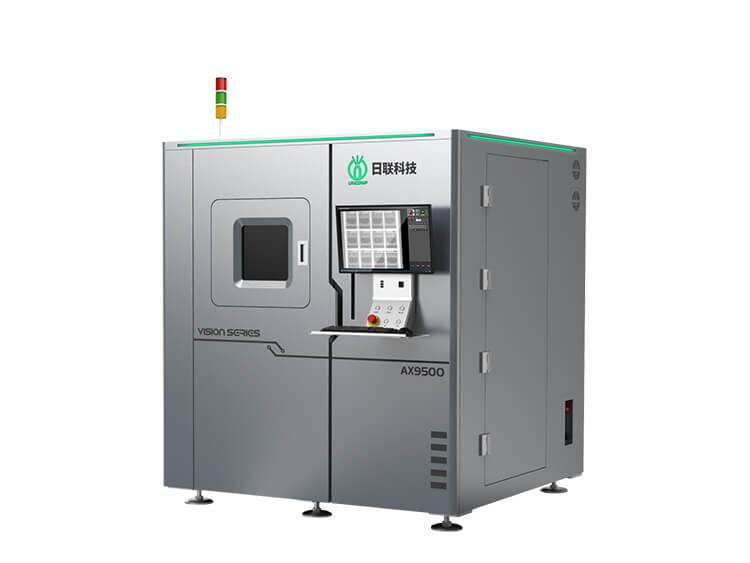

X-Ray Inspection Machine AX9500

Max. tube power: 64 W
Max. target power: 15 W
Imaging system resolution: 1 μm (Optional: 0.5 μm)
Dimensions: L x W x H 1,700 x 1,660 x 1,900 mm
Product description: X-Ray Inspection Machine AX9500, Dimensions: L x W x H 1,700 x 1,660 x 1,900 mm, Max. tube power: 64 W, Max. target power: 15 W, Voltage current: 160 kV / 1000 μA, Imaging system resolution: 1 μm

X-Ray Inspection Machine AX9500

Stand-alone CT X-ray inspection machine
High speed, high accuracy and repeatability
With high-resolution flat panel detector (FPD)
Using 160 kV open X-ray tube
Producing high-definition real-time imaging
6-axis linkage and 360° detection (any angle)
CNC programming
Application: BGA, CSP, flip chip, LED chip, SMT soldering analysis, automotive devices, battery industry, aluminium die casting, molding plastics, ceramics, etc.

System Summary
Footprint	1700(W)1660(D)1900(H)mm
Machine Weight	≈2700kg
Max.Tube Power	64W
Max.Target Power	15W
Max.Voltage / Current	160kV/1000μA
X-Ray Leakage	<0.5μSv/h
Imaging System
Tube Type	Open tube
Resolution	1 μm(Optional 0.5μm)
Detector	FPD
System Magnification	600X
Inspection Area
Max. Inspection Dimension	530*470mm
Max.Load Dimension	600*545mm
Max.Inspection Area (XL Size)	610*1200mm
Motion Control Mode	Joystick Mouse& Keyboard
Detector Angle	360° full viewing angle, 2*70 degree tilt
* Specifications are subject to change without notice, All trademarks are the property of the system maker.
