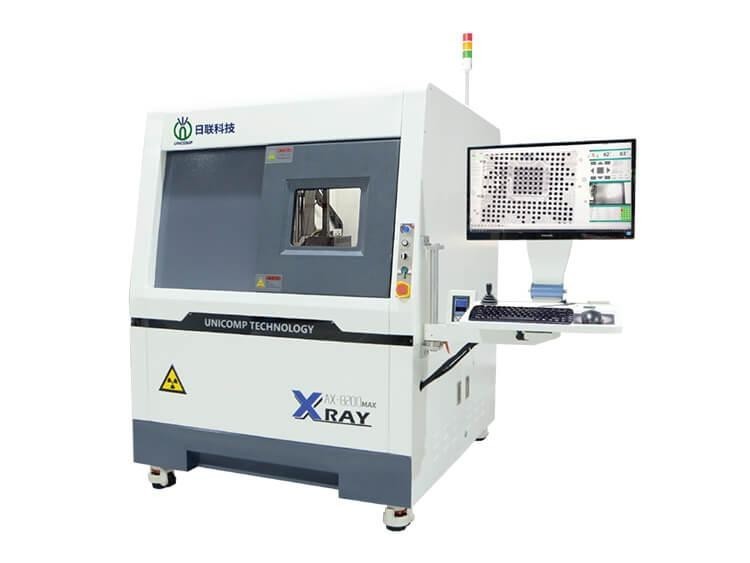

X-Ray Inspection Machine AX-8200 MAX

Max. inspection area: 550 x 550 mm
Manipulator:6-axis
Max. load 10 kg
Dimensions: 1,280 x 1,500 x 1,705 mm
Product description: X-Ray Inspection Machine AX-8200 MAX, X-ray tube type: Sealed Motion control system: Joystick, keypad, mouse & touch panel Max. load 10 kg, Max. inspection area: 550 x 550 mm, Tilt rotation: 60°

X-Ray Inspection Machine AX-8200 MAX

Stand-alone X-ray inspection machine
Easily respond to the comprehensive and multi-angle product testing needs of different users
Large inspection table, laser locator for precise location
24″ FHD interactive touch LCD display
Accurate control, CNC programming, automatic positioning
FPD 60° tilting inspection
Fingerprint access management system
Real-time monitoring of radiation
Application: Semiconductor, SMT, DIP, electronic component testing, covering IC, BGA, CSP, flip chip, automotive parts, aluminum die-casting molds, LEDs, batteries, photovoltaic industries & special industries

System Summary
Footprint	1280(W)×1500(D)×1700(H)mm
Machine Weight	1400 kg
Power Supply	AC 110/220V, 50/60Hz
Plywood Packing Size	1750(W)×1550(D)×2000(H)mm
Packing Weight	1500 kg
Power Consumption	2.0 kW
X-Ray Tube
Tube Type	Sealed
Max. Power	8W
Voltage	0~90kV (Adjustable)
Focus Spot Size	5μm
Imaging System
Detector	Flat Panel Detector (FPD)
Pixel Size	85μm
Effective Detection Area	130*130mm
Frame Rates	20fps
Pixel Matrix	1536*1536
System Magnification	600X
Software
Auto-measuring	BGA Soldering Voids Auto-measuring and Support Data/Graphic Output
Multiple Measuring Tools	Support Measuring Distance, Angle, Diameter, Polygon, PTH filling rate, etc.
CNC Mode	CNC Programmable Inspection, Easy Operation and User Friendly
Real-time Display	Real-time Displaying the Working Data of Voltage, Current, Angle, Date, etc
Navigation	Convenient Target Point Positioning System
Motion Control System
Movement Control	Joystick, Keypad, Mouse &Touch Panel
Max. Loading Area/Weight	610*610mm / 10kg
Max. Inspection Area	550*550mm
Oblique Views	Max. 60°
Manipulator	6-axis with X / Y / Z1 / Z2 / T1 / T2
Industrial PC
Monitor	24’’ FHD Interactive Touch LCD Display
System OS	Windows 10 64bit
Hard disk	1TB
RAM	4GB
CPU model	Intel i7 Processor
Other Features
Door Open	Electric Sliding
X-Ray Safety	<1μSv/h (Meets All International Standards)
Authority Management	Fingerprint Access Magnagement System, and Support Password Accessing.
Safety Operation	Electromagnetic Interlock, Warning Light and Real-time Radioation Leakage Monitor
